| Feature: | Straight And Reverse Twisted | Mesh Hole: | Hexagon |
|---|---|---|---|
| Function: | Wire Mesh Weaver | Mesh Width: | 3m |

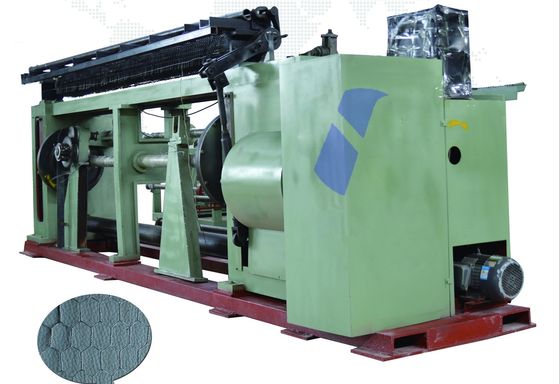

SR Series Straight and Reverse Twisted Hexagonal Wire Mesh Machine
straight and reverse twisted, not necessary to make the wire to the spring before weaving, improve the working efficiency.
65 holes can be weaved per minute, the weaving speed is adjustable.
Mesh width is 2-3meters, the mesh hole is uniform.
With clutch braking device, with inch and linkage movement,flexible and reliable operation, low technical requirements for operators, automatic lubricant supply, reliable lubrication, easy operation, durable, convenient maintenance and adjustment.
| Model |
Mesh width mm |
Hole size mm |
Wire dia. mm |
Number of twists |
Weight t |
Power kw |
| SR | 2000-3000 | 16 | 0.38-0.7 | 6 | 3.5-4.5 |  2.2 |
| 20 | 0.40-0.7 | |||||
| 25 | 0.45-1.1 | |||||
| 30 | 0.50-1.2 | |||||
| 40 | 0.50-1.4 | |||||
| 50 | 0.50-1.7 | |||||
| 55 | 0.70-1.3 | |||||
| 75 | 1.00-2.0 | |||||
| 85 | 1.00-2.2 |
http://v.youku.com/v_show/id_XNzc5MzA2NzU2.html
Company's name: Shijiazhuang Coal Mining Machinery Co., Ltd.
Company's address: 167 Yuxiang Street, Shijiazhuang, China.
Contact person: Gina
Tel: +86 311 85538986
Fax: +86 311 85538889
Email: ginazi@163.com
Website: www.coalcutting.com
