ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels

ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels

    • ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels
    • ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels
    • ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels
    • ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels
  • ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels

    Product Details:

    Place of Origin: China
    Brand Name: SHIMEI
    Certification: MA
    Model Number: zyj-400/130

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Packaging Details: wooden case
    Delivery Time: 7 working days
    Supply Ability: 200 units per month
    Contact Now
    Detailed Product Description
    Multi-function: A Lot Of Applications Light Weight: 500kgs
    Building Block: 3 Parts

    ZYJ-400/130 Light Weight Building Block multi-function drilling rig used in the tunnels



    This drilling rig is specific for the drilling in different tunnel, becasue the post need to press against the roof and floor.



    Description

    In order to guarantee the safety of underground coal mine, exploration must be carried out prior to tunneling or shearing to prevent the outburst of gas or water. Because of the limited space in the working facing, the drilling rig must be small size, light weight, easy to assembled and disassembled, drilling fast, easy to transport and can drilling in different location. It is the features of ZYJ-400/130.

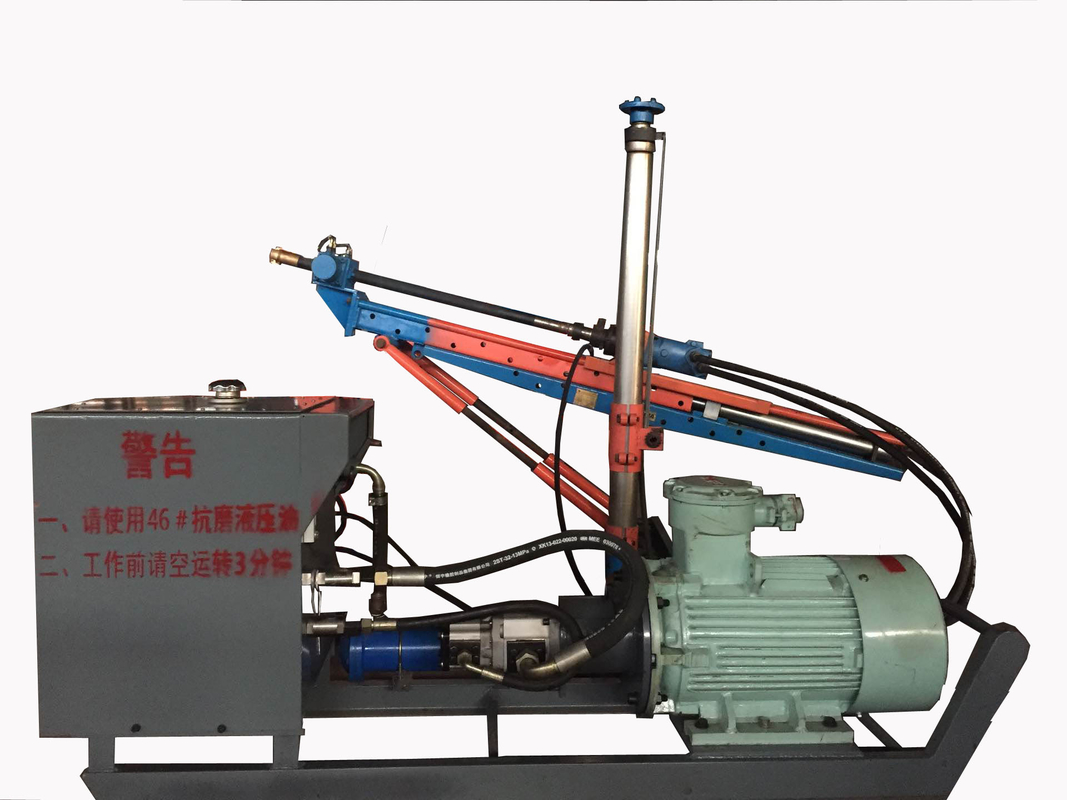

    ZYJ-400/130 drilling rig consists of three parts, the drilling parts, the power pack and the operation panel, each of them are connected by the hydraulic hose. The total weight is only 490kgs, but it is divided three parts; 240kgs for the power pack, 50kgs for the operation panel, and 200kgs for the drilling parts.

    The post of the machine is optional for different gallery height from 2200-3800mm.

    The Post can support between the roof and the floor tightly to give a firm support to the drilling.

    At the same time, the drilling mechanism can move along the post to drilling in different place. It can drill the roof, the floor and rib.

    For its simple structure, the price is very low compared with the other drilling rigs with same function, especially crawler type drilling rigs.

    The drilling rig can be operated by only 2 person.



    Application:

    geological exploration hole in different tunnel

    grouting hole in the tunnel railway.

    Gas drainage hole in the underground coal mine

    Water prediction hole drilling in the gallery

    Coal prediction in the rock gallery

    Coal mine and other mine



    Features:

    The drilling bits can be alloy steel(φ76 φ89)or the diamond type(φ65-φ113) or anchor drilling bits(φ28-φ42)

    The drilling pipe can be through water or slurry

    High efficiency anchor drilling pipe: φ69 φ82

    Friction welding drilling pipe: φ42

    Bolting drilling pipe: S19 S22

    Manufacturer supply directly

    Only 7 days lead time

    Low cost



    Drilling rig Description Unit Parameters
    Nominal pressure Mpa 12
    Nominal torque N.m ≥400
    Nominal rotation speed rpm ≥130
    Propelling speed without load Mm/min

    I grade cylinder: 3400

    I stage: 3400

    II grade cylinder: 6100

    II stage:6100

    Returning speed Mm/min

    I grade cylinder: 3800

    I stage: 3400

    II grade cylinder: 6000

    II stage:6000

    Propelling force (adjustable)



    KN

    I grade cylinder: 30

    I stage: 30

    II grade cylinder: 20

    II stage:20

    Propelling stroke mm 1080
    noise Noise power dB(A) 92
      Noise pressure dB(A) 108
    Hole diameter mm Φ50-Φ113
    Hole depth m 100-150
    Pressure of rinsing water Mpa 0.6-1.2
    Standard height of drilling machine mm 2200-3800 (optional)
    Propeller weight kg 100
    Power pack Nominal pressure Mpa 12
    Nominal flow rate L/min 45/14
    Nominal power kw 11
    Working volume L 120
    Nominal voltage V 380/660 660/1140
    Nominal current A 22.6/13.1 12.6/7.3
    Power pack dimensions mm 1370*460*790
    Power pack weight kg 240
