|Place of Origin:||Shijiazhuang, China|
|Model Number:||RJY RJDHY RJHY RJKY RJDKY|
|Delivery Time:||50-80 working days|
|Usage:||Material And Personal Transportation In The Underground Of Coal Mine||Speed Adjusting:||Variable Frequency|
|Safety Device:||Emergency Stop, Counterweight Limitation||Type:||Stand, Suspended From Roof, And Platform|
|Chair:||Detachable, And Fixed|

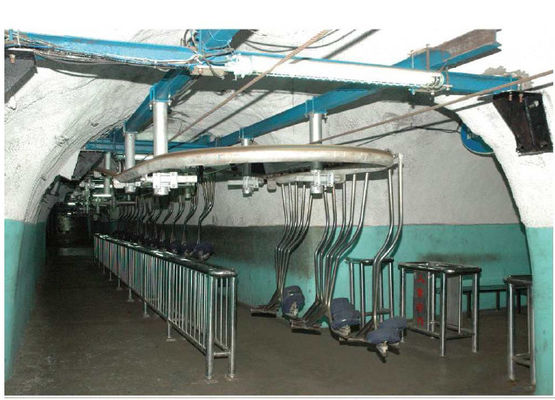

Chairlift Manriding transport System
The transport system is usded to transport the material and personal in the underground of coal mine, FLP type.
The chairlift transport system is divided into three series, RJHY movable chair
series, RJKY detachable chairs series, RJY fixed chairs series. RJHY and
RJKY are applicable to the roadways with 0-25°gradient. And RJY is for 0-35 °.
Horizontal turning device, great inclination cable grasper is the first developed
in China and obtained national patent.
● The driving part can be adjusted by variable frequency, magnetic reluctance
frequency or soft starting control forms to achieve different speed conversion.
● The electronic control system applies PLC to achieve the protections such
as control the system speed, pull emergency stop along the way, the crew
crossing the line, heavy lump limit and other safety protection, with voice alarm
sound and light communication and unattended and many other features.
●It is with high-speed braking and safety brake at the end, both the braking are
fail-safe. The power pack is single or double-loop structure. The whole system
is secure and reliable.
● Fixed cable holder applies advanced preload structure, and will not loose or
● High-speed cable holding device is whole casted, safe, beautifully produced.
Sliding part applies SKF maintenance-free bearings with high reliability and
long service life.
●The chair is special shock absorber spring seat or soft seat foam seat or
two-way travel chairs with reasonable structure, comfortable to sit.
● Pulley diameter is big, with steel body and wear soft lining to reduce rope
wear and tear, long life, the crew ride smooth and comfortable.

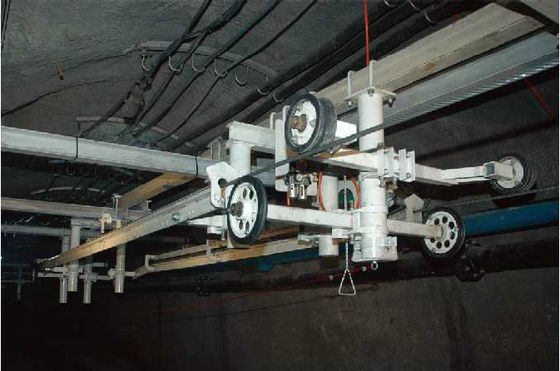

● The wheels and hanging tube are reasonable designed, the replacement of
wheel line and the lubrication of bears are easy. Requirements for precision
of beam is low, the installation can be carried out in variable conditions.
● couplings, lifting tube, bearing shaft are treated by advanced anti-corrosion
technology; The cable holding device, chairs, wheels are galvanized or spray
finished, the complete equipment is corrosion resistant
