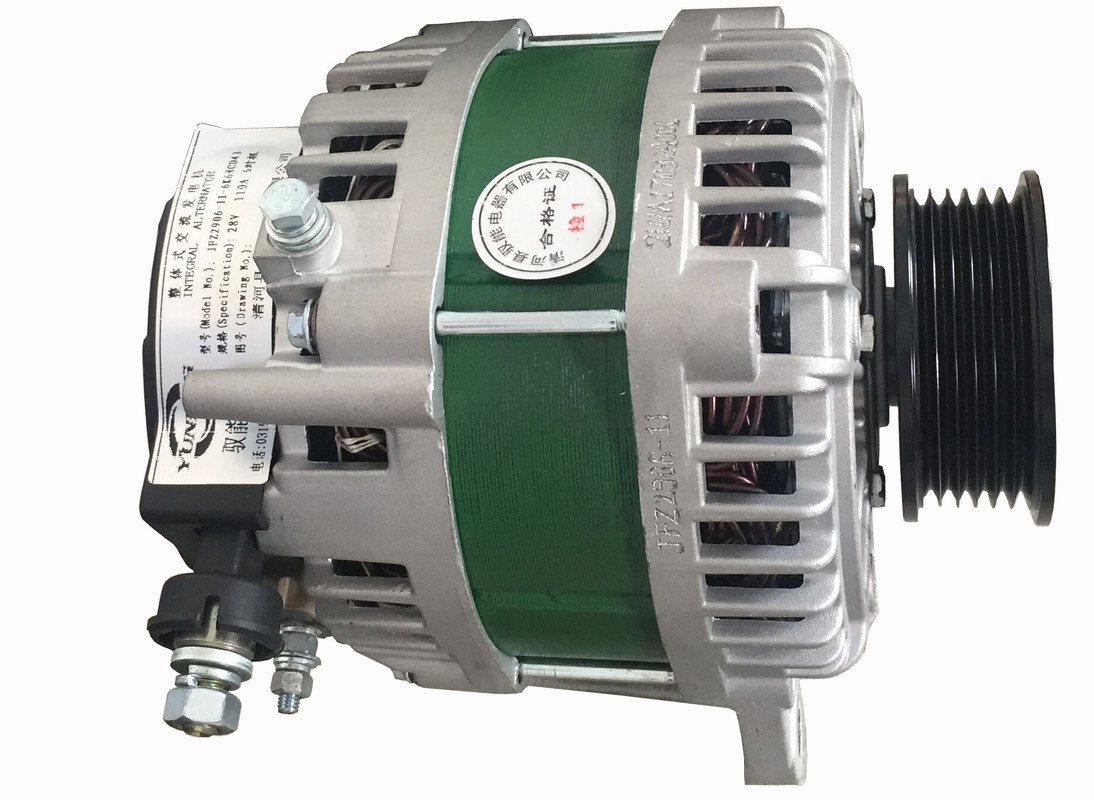

Invention patented small size big power 28V 110A 6 pairs of magnetic poles alternator

Invention patented small size big power 28V 110A 6 pairs of magnetic poles alternator

    • Invention patented small size big power  28V 110A 6 pairs of magnetic poles alternator
    • Invention patented small size big power  28V 110A 6 pairs of magnetic poles alternator
    • Invention patented small size big power  28V 110A 6 pairs of magnetic poles alternator
  • Invention patented small size big power  28V 110A 6 pairs of magnetic poles alternator

    Product Details:

    Place of Origin: Hebei
    Brand Name: Yuneng
    Certification: CCC
    Model Number: JFZ2906-11-6K68CD43

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 5 working days
    Contact Now
    Detailed Product Description
    Small Size Big Power: 178.36*168*168mm Warranty Period: 2 Years
    Voltage: 28V Current: 110A
    Patent No.: ZL 2012 1 0549911.0

    Patent small size big power 28V 110A vehicle alternator long service life and reasonable price (patent No. ZL 2012 1 0549911.0)

    Invention patented small size big power  28V 110A 6 pairs of magnetic poles alternatorInvention patented small size big power  28V 110A 6 pairs of magnetic poles alternator

    Specification:



    1. rotation: clockwise (viewed from the driving end)

    2. working temperature: -40 ℃~85℃

    3. rated rotation speed: 6000rpm,

    Max. working rotation speed: 8000rpm

    4. unloaded speed: n≤1300rpm

    n=3000rpm, I=90A, U≥27V

    voltage adjusting valve: n=6000rpm, T=25℃, I=3A, U=28±0.5V, temperature compensation ratio: -4mV~-10mV/℃.

    5 rectifier structurer: 9 tubes

    6 groove of pulley: 6



    Invention patented small size big power  28V 110A 6 pairs of magnetic poles alternator



    Features:

    1. 2 years warranty period.

    2. more than 80% conversion efficency to save fuel.

    3. good output under the ideal speed and low speed.

    4. self excitation system is designed to the generator, thereby can connected with air conditioner directly.

    5. multi tube rectifier structure.

    6. multi-unit power generation structure.

    7. good cooling system.

    8. overboltage and surge voltage protection to avoid damage to the engine ECU.

    9. long service life
