|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5 working days|
|Supply Ability:||1000 sets per month|
|Lifting Capacity:||3 Tons At 1.3m||Feature:||Small Size, Agile To Move|
|Application:||Small Space Or Area Indoors Or Outdoors|
The mini crane is designed and built for working in low access confined areas either indoors or outdoors. It is mounted on a dual track chassis with “spider-type” legs for its outriggers. It can be used where conventional lifting equipment or truck mounted crane will not have access due to its size.

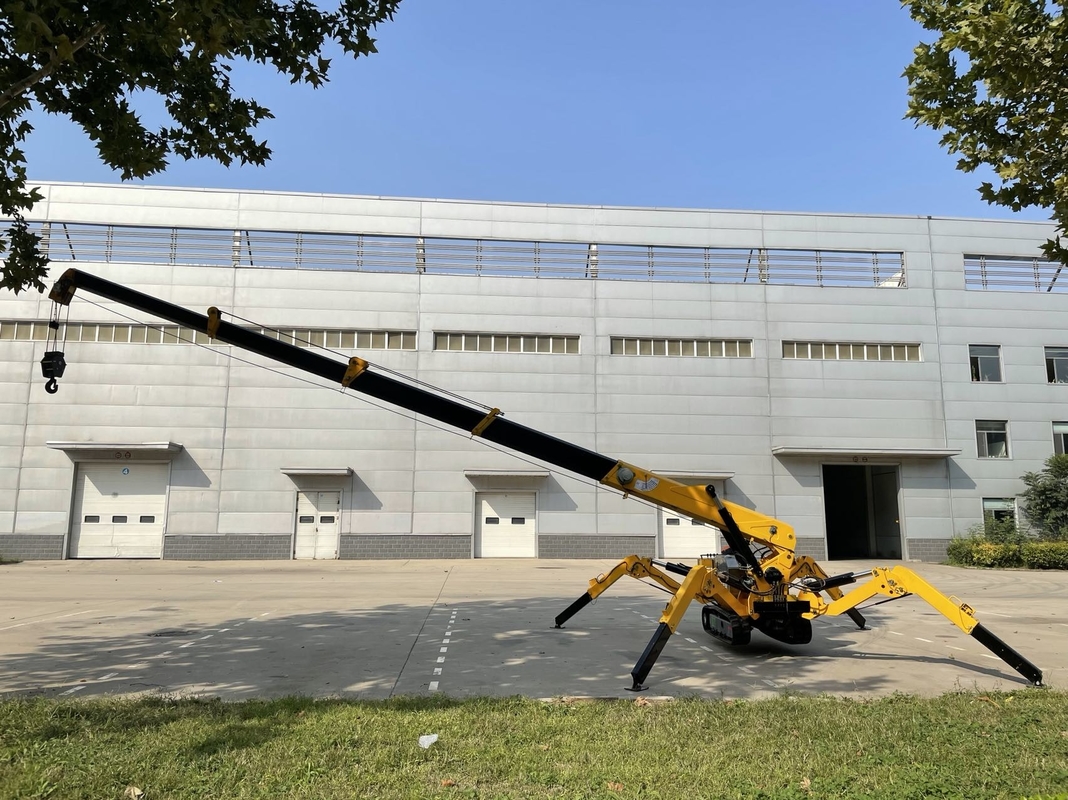

crawler spider crane with Max. 3 tons lifting capacity
Feature: very agile to move.
used in the narrow space, indoor.
the crawler is friend to the floor. No hurt to the indoor floor.
lifting capacity: 3000kgs at 1.3m, 2400kgs at 2.5m
Max. lifting moment: 60kN.m
Max. lifting capacity: 3000kgs
Max. working radius: 9.05m
Max. lifting height: 9.6m
Luffing angle: 0-80 degree
Slewing angle: 360 continuous
Outrigger span: 4.5m(long)*4m(front)*4.8m (rear)
Traveling speed: 0-2.2km/h( diesel) 0-1.7 km/h (motor)
Gradient: 20 (36%)
Ground pressure: 47kPa
Working pressure of hydraulic system: 16Mpa
