ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine

ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine

    • ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine
    • ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine
    • ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine
    • ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine
  • ZCY60R side dumping rock loader for material cleaning after blasting in the underground coal mine

    Product Details:

    Place of Origin: China
    Brand Name: SHIMEI
    Certification: MA
    Model Number: ZCY60R

    Payment & Shipping Terms:

    Packaging Details: NO
    Delivery Time: 20 DAYS
    Payment Terms: L/C AT SIGHT OR T/T
    Supply Ability: 300 UNITS
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Small Size: 4080*1480*1500mm Type: Hydraulic Type
    Dumping Direction: Both Sides Accessory: A Breaking Hammer Can Be Equipped
    High Light:

    loader

    ,

    coal loader

    ,

    side dumping

    a breaker can be added to the machine

                                                      The bucket can be replaced by a breaker

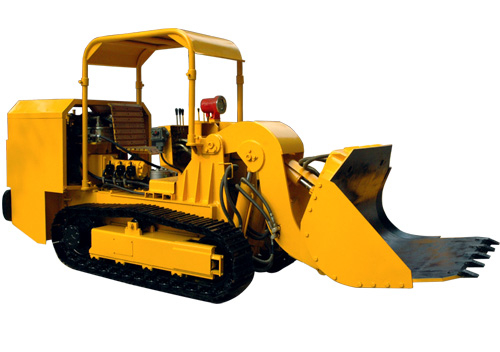

    ZCY60R and ZCY45R full hydraulic side dumping rock loader is crawler type loading equipment, main applied in loading of coal or rock in the coal tunnel, coal and rock mixed tunnel, and full rock tunnel. With the features of Big force, good mobility, work in full section, safe, multifunction. Besides of loading, it can also works as the work plateform for supporting, short transportation, floor cleaning and rib cleaning.

    1. Big shovel force, good loading capacity: Sealed lubricated crawler is applied, the traveling components such as the crawler shoes, the collars, etc are all quenched, long work life, wearable. The shovel and pulling force is large, can be used in the smooth or tilt tunnel in various sections; The edge of the bucket is made by special material with high strength and wear resistance character, and the work life is long.

    2. Traveling stable, traveling speed 0.7m/s(2.5km/h), transport at high efficiency.
    3. Smooth operation, small punch, more suitable to the underground space.
    4. Sealings are good, no leakage.
    5. Can be matched with other equipment such as drilling rig, conveyor, and belt conveyor, or the shuttles.

    6. Multifunction:
    A. The bucket can be used to lifting materials;
    B. The bucket can also act as the work platform.;
    C. Can be used to transport materials;
    D. Reduce loading and transport time in the dangerous area;
    E. Excellent dinting ability and wall cleaning ability make it possible for 100% mechanism, no shovel work.



    Model ZCY45R ZCY60R ZCY60R
    Big gradient
    ZCY120(100)R ZCY120(100)R(A)
    Bucket capcity m3 0.45 0.6 0.45 1.2(1.0) 1.2(1.0)
    bucket width mm 1480 1740 1450 1770 1770
    Max. dumping height mm 1550 1650 1650 1650 1650
    Max. dumping angle   55o 55o 55o 55o 55o
    Dinting height mm 600 600 600 600 600
    Max. drawing force kN 35 50 50 60 66
    Rated drawing force kN 25 35 35 40 56
    Traveling speed km/h 2 2.2 2 2.1 3.1
    Min. ground clearance mm 180 200 200 200 200
    Greadbility   ±16o ±16o ±20o ±16o ±16o
    Track shoes width mm 260 260/400 350 260/400 260/400
    Ground pressure MPa 0.07 0.09/0.06 0.07 0.09/0.06 0.09/0.06
    Motor power kW 30 45 45 55 55
    Voltage v/v 380/660(660/1140) 660/1140(380/660) 380/660(660/1140) 380/660(660/1140) 380/660(660/1140)
    Traveling motor pressure MPa 17 21 17 19 19
    pressure of working system MPa 16 16 16 16 16
    Overall dimensions mm 4080×1200×1500 4600×1200×1650 4600×1380×1650 4980×1260×1650 4980×1260×1650
    Total weight t 5.2 7.8 7.8 9 8.5
    Dimensions of Max. part
    L×W×H
    mm 2000×1200×1220 2060×700×1310 2060×700×1310 2160×770×1310 2160×770×1310
    Max. part weight kg 2300 1300 1300 1470 1470
    Cooling mode   water water water water air
