| Place of Origin: | Shijiazhuang, China |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | ZYJ-1000/135 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | polywood case |
| Supply Ability: | 1000 unit per month |
| Rated Torque: | 1000 KN | Rated Rotation Speed: | 136rpm |
|---|---|---|---|
| Type: | FLP | Function: | Underground Water Exploration |
| Feature: | 360° Rotary |

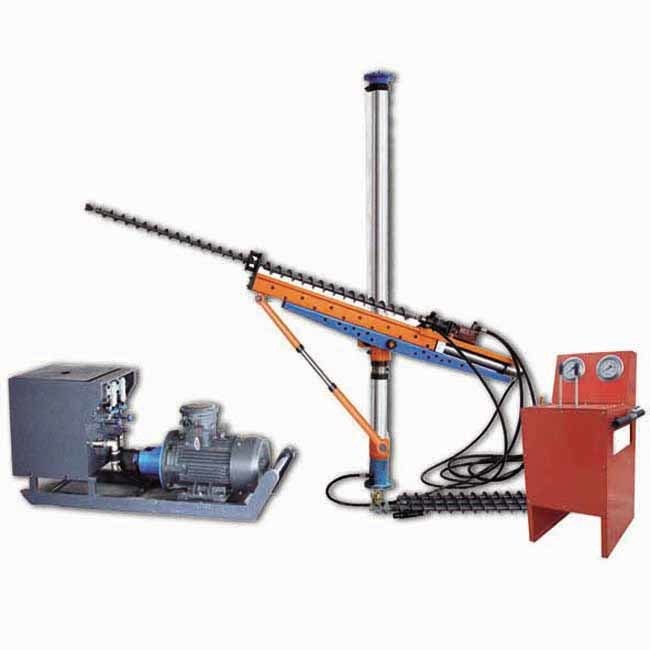

ZYJ-1000/135 FLP underground water exploration 360°rotary drilling rig
ZYJ-1000/135 drill rig is widely used in different angles drilling for water exploring, water injecting, gas drainage, caving blast holes, drain holes, gas drainage hole, grouting hole, geological exploring in underground coal mine.
Features
The machine can be divided into three independent parts: post, pump station, control unit; Compact and reasonable structure, light weight, high stability, high precision drilling; Small footprint, suitable for underground narrow operating environment.
It can also attached to the side of the roadheader to save space.
PDC drill bit for boring, attached different diameter bits fit different requirements of drill exploring.
|
Drill Rod Diameter (mm) |
φ42/φ50 | φ50/φ63.5 | φ63.5/φ73 |
| Drill Bit Diameter (mm) | φ56/φ65/φ75/φ90/φ94 | φ65/φ75/φ90/φ94/φ108 | φ75/φ90/φ94/φ108/φ133 |
