MQT-130 Pneumatic Roof Bolter for bolting in the underground coal mine

MQT-130 Pneumatic Roof Bolter for bolting in the underground coal mine

    • MQT-130 Pneumatic Roof Bolter for bolting  in the underground coal mine
    • MQT-130 Pneumatic Roof Bolter for bolting  in the underground coal mine
  • MQT-130 Pneumatic Roof Bolter for bolting  in the underground coal mine

    Product Details:

    Place of Origin: China
    Brand Name: SHIMEI
    Certification: MA
    Model Number: MQT-130

    Payment & Shipping Terms:

    Price: USD1600
    Packaging Details: carton
    Delivery Time: within 1 days from the signature of the contract
    Payment Terms: L/C T/T
    Supply Ability: 3000 units
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Type: Pneumatic Type Usage: Roof Supporting In The Underground Coal Mine
    Alternative Name: Bolting Machine Model: MQT-130
    Accessories: Drilling Rod And Drilling Bits Available

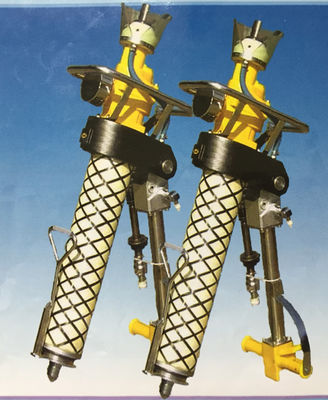

    Pneumatic Roof Bolter for roof supporting in the underground coal mine MQT-130



    It is mainly used for drilling bolting holes in the roof of underground coal mine. The hardness of the roof can be less than 80Mpa.
    It with the features of small size, light weight, large torque, easy operation and maintenance. Hole drilling, stirring of gel and bolting can be achieved by this single machine.



    The roof bolter has different height can meet the different roadway.



    Description
    MQT-90/2.4I
    MQT-90/2.4II
    MQT-90/2.4III
    MQT-110/2.5I
    MQT-110/2.5II
    MQT-110/2.5III
    MQT-120/2.7I
    MQT-120/2.7II
    MQT-120/2.7III
    MQT-130CI
    MQT-130CII
    MQT-130CIII
    Working pressure MPa
    0.4-0.63
    0.4-0.63
    0.4-0.63
    0.4-0.63
    Working pressure MPa
    0.5
    0.5
    0.5
    0.5
    Nominal speed rpm
    240
    240
    240
    240
    Nominal torque N.m
    >90
    >110
    >120
    ≥130
    Idle speed rpm
    ≥750
    ≥750
    ≥700
    ≥700
    Air consumption lpm
    3000
    3400
    3600
    3700
    Max. output power kW
    2.4
    2.5
    2.7
    3.0
    Max. push force kN
    9.2
    9.2
    11.4
    11.4
    Nominal push force kN
    7.5
    7.5
    9.1
    9.1
    Torque at Max. Load N.m
    180
    180
    185
    190
    Stall torque N.m
    190
    190
    195
    200
    Rinsing water pressure (MPa)
    0.6-1.2
    Noise level dB (A)
    <95
    Rod sleeve size mm
    S=19 S=22
    Min. Height mm
    1430
    1280
    1155
    1430
    1280
    1155
    1280
    1340
    1155
    1430
    1280
    1155
    Max. Height mm
    3600
    3000
    2500
    3600
    3000
    2500
    3000
    3000
    2500
    3600
    3000
    2500
    Weight kg
    50
    47
    45
    51
    48
    46
    49
    49
    47
    52
    49
    47
