    Double Power Resource: Electricity And Diesel Engine Of The Vehicle Drilling Depth: 600m
    Hole Dia.: 520mm Usage: Hole Drilling For Water And Geological Well
    Feature: Portable Drilling Machine Weight Indicatior: Digital Weight Indicatior To Show The Pressure And The Total Weight Of Drilling Tools

    SPC-600 portable borewell drilling rig for 600m water or geological hole

    Double Power double winch SPC-600 portable borewell drilling rig for 600m water well with weight indicator

    Double Power double winch SPC-600 portable borewell drilling rig for 600m water well with weight indicator

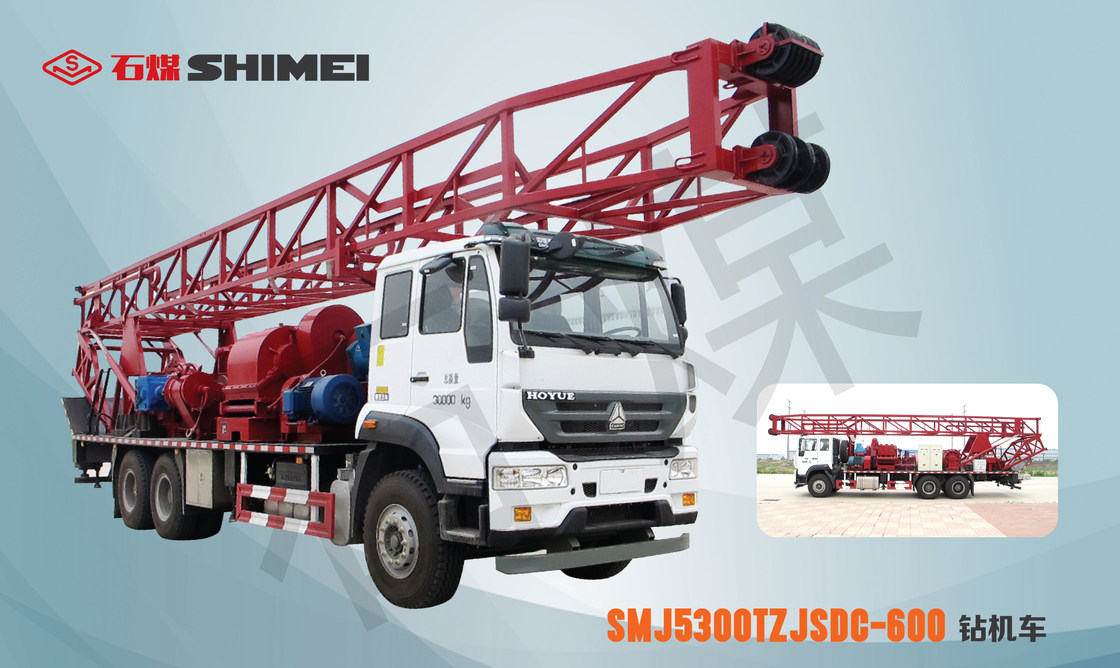

    SPC series truck-mounted drilling rig is the rotary table type drilling machine is mounted on truck 8×4 with 4 axies, can go drilling 520mm diameter and up to 600 meters depth water well, ventilation hole of tunnel, hydrogeological survey hole, grounting hole, in-situ leaching uranium mining well, shallow coalbed methane hole, and some others applications. All the parts including the diesel power, gear box, reducing box, hoist, rotary table, mud pump and derric are all mounted on the chassis. The main transfer is made by mechanically, some parts are controlled by hydraulic.



    This machine is with two power resource, one is the engine of the truch chassis, and another one is the diesel machine mounted on the truck.



    It is with both the advantages of traditional drilling machine such as low consumption, easy operation, easy maintenance and low fault rate, and that of truck-mounted drilling machine such as convenient and quick. Compared with the same type drilling machine, the capacity reserve coefficient is increased, security lighting system and auxiliary power unit is equipped, with more drilling capacity.



    The chassis is from Sinotruk, robust and service center available in 53 countries.



    It is mainly used for the drilling of water well, hydrogeological exploration, grouting, the shallow coal seam and other construction holes.



    Model SPC-1000 SPC-600
    Overall dimensions mm 14200×2550×4000 13900×2550×4000
    Total weight t 26 30
    Crew/operator 2 2
    Chassis TAZ5415TXJ TAZ5325TXJB
    Driving method 8×4 6×4
    Max. traveling speed km/h 80 78
    Min. truning dia. m 29 20
    Grand clearance (full load) mm 314 300
    Max. gradability(full load) 32% 32%
    Braking distance at 30km/h ≤10 ≤10
    The hole dia. mm 520 520
    Hole depth mm 1000 600
    Kelly bar mm 108×108×10500 108×108×10500
    Drilling pipe mm 89×9500 89×9500
    Power model SC13G310D2+G0219 MC07.28-50 Y250M-4
    Powercapacity kW 227 206 55×2
    Hole dia. of Rotary table mm 520 520
    Rotatry speed of rotary table r/min 23 40 69 110 182 219 23(reverse) 22 39 65 101 145 190 23(reverse)
    Rotary table form Hydraulic Mechinical winding
    Add and relief pressure to feed mechanism kN 350/220 300( relief)
    Add and relief pressure stroke mm 10800 10800
    Shackle max. torque kN.m 60 /
    Single rope pulling force of hoist kN 70(master) 1.5( slave) 50(master) 50(slave)
    Rope hole capacity of hoist m 150/φ22 150/φ18
    Speed on the second floor m/s 1.9 1.1 1.8
    Hoist model 3NB-130 3NB-130
    Max. flow of mud pump L/min 1000 1000
    Max. pressure of mud pump MPa 10 10
    The bearing capacity of derric t 60 40
    Efficient height of derric m 15 15





    Hydraulic and air controlled system of the truck-mounted drilling rig

    1. The derrick will be erected by a hydraulic cylinder and the machine is supported by hydraulic outriggers, and the hydraulic cylinder will assist to shackle. The power pack (Fig. 9) consists a 5.5KW motor which independently drives a CBY2020 gear pump. The reversing valve is a seven-way reversing valve. In addition to four for hydraulic outriggers, one of the other three is used for the derrick erection cylinder, one for the bracket cylinder and the other for the cat head shackle cylinder. In order to ensure the smoothness of erection of the derrick and prevent the hose from bursting, a balancing valve and an explosion-proof valve are installed in front of the derrick erection cylinder. In order to ensure reliable support of the cylinder, the outrigger cylinder and the bracket cylinder are all equipped with hydraulic locks. After the derrick is erected completely, the hydraulic pump can be shut down. The tank has a volume of about 200 liters. Generally, the No. 46 advanced anti-wear hydraulic oil is used. See the hydraulic system schematic (Figure 1) for details.

    2. The main control of the rig is air controlled. The air from the air compressor is used for the mud pump clutch, the winch clutch, the turntable clutch, the hoisting clutch of main and auxiliary winch, over winding preventing valve is equipped to the winch to prevent travelling is too high to hit the overhead trolley. See the schematic diagram of the pneumatic system (Figure 2).
