QYS-2IIB stiff boomed truck-mounted crane 2 tons lifting capacity

    • QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity
    • QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity
    • QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity
    • QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity
  • QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity

    Product Details:

    Place of Origin: Shijiazhuang, China
    Brand Name: SHIMEI
    Certification: CCC, ISO9001
    Model Number: QYS-2IIB

    Payment & Shipping Terms:

    Price: USD6500
    Packaging Details: polywood case
    Delivery Time: with 30 days on recipt the first payment
    Payment Terms: T/T, L/C
    Supply Ability: annual 3000 units
    Minimum Order Quantity: 1 unit
    Contact Now
    Detailed Product Description
    Model: QYS-2IIB Alternative Name: Lorry Crane, Loader Crane
    Catagory: Material Handling Machine Max. Lifting Capacity: 2 Tons At 2.1m
    Type: Still Boomed Application: Lifting Machine
    Feature: Hydraulic Crane

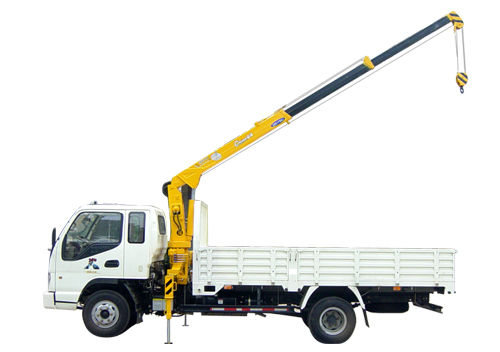

    QYS-2IIB stiff boomed truck-mounted crane 2 tons lifting capacity

    The truck-mounted crane is also named loader crane or lorry crane, it is mounted on the truck-chassis between the driver's cabin and the loading body to help the truck to load or unload the materials. The truck can still be used to transport the material.



    Specification

    CRANE CAPACITY: 2000KGS at 2.1m
    BOOM 3 sectioned, fully hydraulic telescoping boom
    Retracted length 2.64m
    Extended length 6.14m
    Elevation Double-acting hydraulic cylinder
    Boom point 2 sheaves
    WINCH Hydraulic motor driven gear speed reduction,
    provided with worm self-lock brake
    Single line pull 500kgs
    Single line speed 30m/min (at 4thlayer)
    Wire rope
    Diameter × length 6mm ×45m
    Roll block double sheaves
    SWING Hydraulic motor driven (worm gear and rod)
      Clockwise or counter-clockwise 360°continuous
    OUTRIGGER Hydraulic cylinders, integral with crane frame
    Power up and down
    Extended width 1770-2800 mm
    HYDRAULICS Hydraulic pump gear pump
    Hydraulic motor Cycloid hydraulic motor
    Control valve Multiple control valve with integral safety valve
    Oil reservoir capacity 70L
    SAFETY DEVICES overflow valve in the hydraulic system, balance valve and hydraulic lock for
    each cylinder, auto mechanical of hydraulic brake for hoisting mechanism.
    optional over wind alarm for cable wire or prevent over wind device,
    optional moment protector, optional swivel limit device.
    CRANE WEIGHT Approx. 750kgs
    Max. Lifting Moment: 42kN.m
    Max. Lifting Height: 7.4m to ground
    Max. Working Radius: 6m
    Lifting capacity at different working radius: 2000/2.1, 1600/2.5, 1200/3.0 800/4.0 200/6.0

    QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity

    QYS-2IIB  stiff boomed truck-mounted crane 2 tons lifting capacity
