    Detailed Product Description
    Double Power Resource: Diesel Engine And Electricl Motors Drilling Depth: 600m
    Double Winch: Same Master And Slave Winch With 50 Tons Lifting Capacity Usage: Water Well
    Feature: Truck-mounted Drilling Rig Long Mast: L5m Useful Height

    15m long mast Double Power double winch 600m truck-mounted water well rotary drilling rig

    15m long mast Double Power double winch 600m  truck-mounted water well rotary drilling rig

    15m long mast Double Power double winch 600m  truck-mounted water well rotary drilling rig

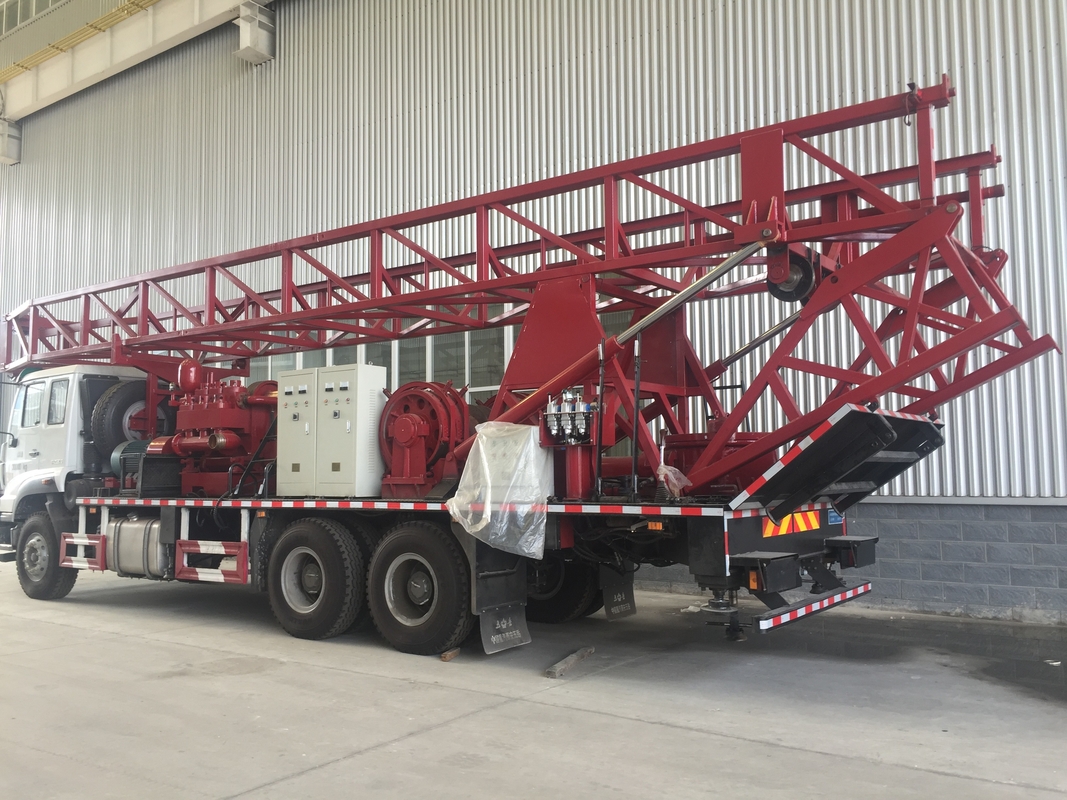

    SPC series truck-mounted drilling rig is the rotary table type drilling machine is mounted on truck 6×4 with 3 axies, can go drilling 520mm diameter and up to 600 meters depth water well, ventilation hole of tunnel, hydrogeological survey hole, grounting hole, in-situ leaching uranium mining well, shallow coalbed methane hole, and some others applications.

    All the parts including the diesel power, gear box, reducing box, hoist, rotary table, mud pump and derric are all mounted on the chassis. The main transfer is made by mechanically, some parts are controlled by hydraulic.

    The chassis is from Sinotruk, robust and service center available in 53 countries.



    Feature:

    1. The drilling machine can be driven by the diesel engine of the chassis or the motor mounted on the chassis, the two power resource can be switched quickly.

    2. integrated planetary double winches in series connection are adopted, which can realize the rapid switching between the drilling state and the hoisting state.

    3. The winch adopts the pneumatic clutch to shift gears, which can realize non-stop shifting.

    4. The turntable shifting adopts the “FAST” automobile gearbox. The gearbox has a unique structure, large torque reserve coefficient and reliable use.

    5. The derrick has a folding design, and the transportation size is shorter but the bearing capacity is large.

    6. The main drive of the rig is mechanical transmission. Except for braking and speed shifting, the rest of the control is pneumatic control, which can be remote controlled to reduce the labor intensity of the driller, and the reliability and economy are greatly improved.

    7. In addition to the hydraulic lock, the hydraulic outrigger are equipped with mechanical lock to ensure stable and reliable support.

    The drilling rig can drill in various layers such as clay, sand layer and Quaternary bedrock. It is mainly used for water wells, hydrogeological exploration holes, in-situ leaching of uranium wells, grouting holes, shallow coal seam gas, engineering Construction of grouting holes or other engineering holes.

    8. Long mast, the height of the derrick is 17m and the useful height is 15m, 9.5m drilling pipe and 11m casing pipe can be used

    Model SPC-1000 SPC-600
    Overall dimensions mm 14200×2550×4000 13900×2550×4000
    Total weight t 26 30
    Crew/operator 2 2
    Chassis TAZ5415TXJ TAZ5325TXJB
    Driving method 8×4 6×4
    Max. traveling speed km/h 80 78
    Min. truning dia. m 29 20
    Grand clearance (full load) mm 314 300
    Max. gradability(full load) 32% 32%
    Braking distance at 30km/h ≤10 ≤10
    The hole dia. mm 520 520
    Hole depth mm 1000 600
    Kelly bar mm 108×108×10500 108×108×10500
    Drilling pipe mm 89×9500 89×9500
    Power model SC13G310D2+G0219 MC07.28-50 Y250M-4
    Powercapacity kW 227 206 55×2
    Hole dia. of Rotary table mm 520 520
    Rotatry speed of rotary table r/min 23 40 69 110 182 219 23(reverse) 22 39 65 101 145 190 23(reverse)
    Rotary table form Hydraulic Mechinical winding
    Add and relief pressure to feed mechanism kN 350/220 300( relief)
    Add and relief pressure stroke mm 10800 10800
    Shackle max. torque kN.m 60 /
    Single rope pulling force of hoist kN 70(master) 1.5( slave) 50(master) 50(slave)
    Rope hole capacity of hoist m 150/φ22 150/φ18
    Speed on the second floor m/s 1.9 1.1 1.8
    Hoist model 3NB-130 3NB-130
    Max. flow of mud pump L/min 1000 1000
    Max. pressure of mud pump MPa 10 10
    The bearing capacity of derric t 60 40
    Efficient height of derric m 15 15
