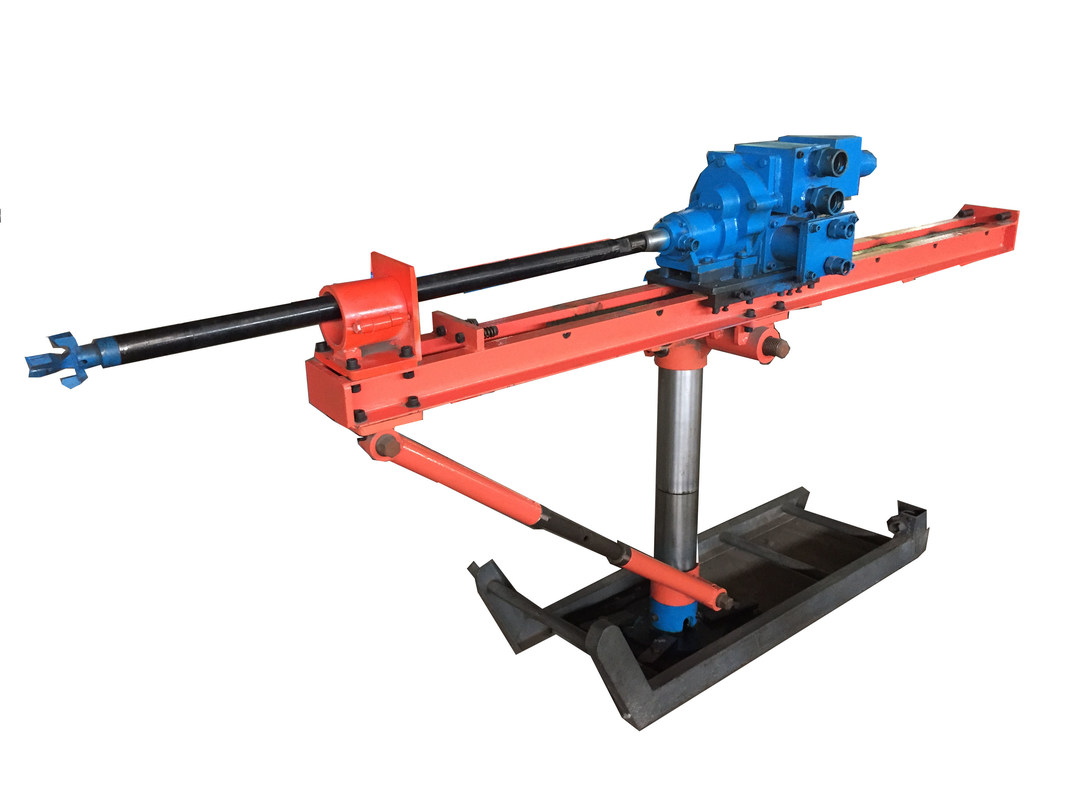

ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting hole

ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting hole

    • ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting  hole
    • ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting  hole
    • ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting  hole
    • ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting  hole
  • ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting  hole

    Product Details:

    Place of Origin: Shijiazhuang, China
    Brand Name: SHIMEI
    Certification: DGMS MA
    Model Number: ZYJ-400/130

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: polywood case
    Delivery Time: 8 days
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Function: Drilling Of Caving Hole, Gounting Hole Structure: With Two Cylinders To Support The Drilling Rig, Small But Robust
    Other Function: Can Be Attached To The Side Of The Roadheader To Save Space Type: Hydraulic Rotatry Type

    ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting hole



    ZYJ-400/130-trestle hydraulic rotary drilling rig is applied to drilling of caving blast holes, drain holes, gas drainage hole, grouting hole, geological exploration holes and other projects holes, is and ideal drilling equipment for coal mine as well as other mines.

    Compact and reasonable structure, light weight, high stability, high precision drilling;

    Small footprint, suitable for underground narrow operating environment
    It can also attached to the side of the roadheader to save space.

    ZYJ-400/130 Trestle hydraulic rotary drilling rig for caving hole and grouting  hole







    Drilling rig Description Unit Parameters
    Nominal pressure Mpa 12
    Nominal torque N.m ≥400
    Nominal rotation speed rpm ≥130
    Propelling speed without load Mm/min

    I grade cylinder: 3400

    I stage: 3400

    II grade cylinder: 6100

    II stage:6100

    Returning speed Mm/min

    I grade cylinder: 3800

    I stage: 3400

    II grade cylinder: 6000

    II stage:6000

    Propelling force (adjustable)



    KN

    I grade cylinder: 30

    I stage: 30

    II grade cylinder: 20

    II stage:20

    Propelling stroke mm 1080
    noise Noise power dB(A) 92
      Noise pressure dB(A) 108
    Hole diameter mm Φ50-Φ113
    Hole depth m 100-150
    Pressure of rinsing water Mpa 0.6-1.2
    Standard height of drilling machine mm 2200-3800 (optional)
    Propeller weight kg 100
    Power pack Nominal pressure Mpa 12
    Nominal flow rate L/min 45/14
    Nominal power kw 11
    Working volume L 120
    Nominal voltage V 380/660 660/1140
    Nominal current A 22.6/13.1 12.6/7.3
    Power pack dimensions mm 1370*460*790
    Power pack weight kg 240
