Introduction:
Introduction: SMJ5070TSLQ4
Chassis: Qingling ISUZU
Features:
1. Hign intelligent operation box, with few buttons, easy to operate.
2. Applied the imported thread cartridge valve, which make the rotation speed of the broom adjusted stepless, compact structure, powerful and reliable.
3. The water tank is under the trash, and has a 12°angle to the bottom plate, this design not only makes the accumulation of the garbage more even, but also makes the dumping more thoroughly.
4. The application of the centrifugal automatic clutch makes the engine to start up idly.

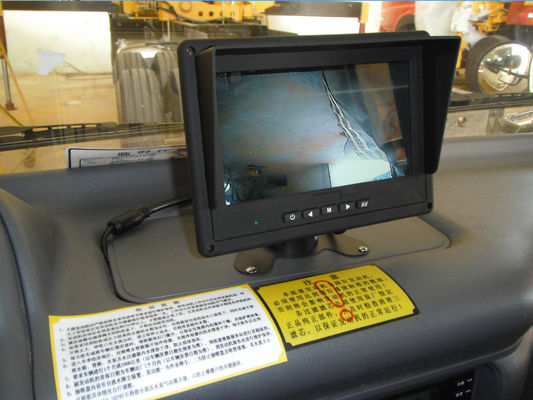

5. TV Monitor can provide the operator the image of cleaning quality and sweeping.
6. optional device: rolling brush, rear suck pipe, shovels, etc.
|
Description |
Unit |
Parameters |
|
Overall dimensions(L×W×H) |
mm |
5640×2000×2445 |
|
Chassis model |
|
QL1070A1HAY |
|
Engine model |
|
4KH1-TCG40 |
|
Engine power |
Kw |
88 |
|
Max. total weight |
kg |
7300 |
|
Curb mass |
kg |
5260 |
|
Rated weight |
kg |
1910 |
|
Max. speed |
Km/h |
105 |
|
Max. gradient |
% |
30 |
|
Braking distance(full load, the primary speed 30km/h) |
m |
≤10 |
|
Trash capacity |
m³ |
5 |
|
Water tank capacity |
L |
1100 |
|
Max. cleaning width |
mm |
3000 |
|
Cleaning speed |
Km/h |
3-15 |
|
Max. cleaing capacity |
|
45000 |
