| Place of Origin: | hydraulic components |
| Brand Name: | SHIMEI |
| Certification: | pump |

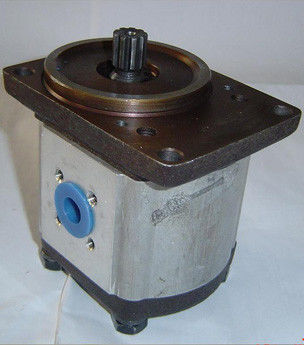

| Model Number: | YBC series gear pump |
| Minimum Order Quantity: | 1 |
|---|
DimensionsⅠ
Model | A | A1 | C | C1 | L | L1 | L2 | B | B1 | B2 | b | b1 | H |
YBC-5/80 | 105 | 85 | 88 | 68 | 140 | 114 | 59 | 125 | 44 | 36.3 | 16 | 4.5 | 15 |
YBC-12/80 | |||||||||||||
YBC-12/125 | |||||||||||||
YBC-20/80 | 128 | 36.2 | |||||||||||
YBC-30/80 | 147 | 118 | 128 | 99 | 186 | 149 | 77 | 167 | 59 | 46.2 | 21 | 6 | 21 |
YBC-45/80 | |||||||||||||
YBC-60/80 | 170 | 63 |
Model | D | X | Y | Z | e | e1 | w | d | f | u |
YBC-5/80 | 32 | 16 | 10 | 10 | 30 | 20 | 6.6 | 16 | 9.25 | 3 |
YBC-12/80 | ||||||||||
YBC-12/125 | ||||||||||
YBC-20/80 | ||||||||||
YBC-30/80 | 50.8 | 19 | 11.5 | 12 | 37.2 | 24.2 | 9 | 22 | 14 | 4 |
Model | A | A1 | C | C1 | L | L1 | L2 | B | B1 |
YBC-16/160 | 105 | 85 | 88 | 68 | 140 | 114 | 59 | 122 | 44 |
YBC-30/160 | 147 | 118 | 128 | 99 | 186 | 149 | 77 | 63.5 | 62 |
YBC-35/160 | |||||||||
YBC-45/160 | 170 | 67 |
Model | b | b1 | H | D | L | d | d1 | h |
YBC-16/160 | 16 | 4.5 | 15 | 32 | 20 | 16 | 13 | 3.5 |
YBC-30/160 | 24 | 5 | 21.15 | 50.8 | 25 | 22 | 18 | 5 |
YBC-35/160 | ||||||||
YBC-45/160 |
Specification
Type | Displacement(mL/r) | Pressure(MPa) | Rotation(r/min) | Input power(kW) | in and out pipe dimensions | Weight(kg) | |||
Nominal | Max. | Nominal | Max. | out | in | ||||
YBC-5/80 | 4 | 8 | 12 | 1500 | 2000 | 1.4 | G5/8″ | G3/8″ | 1.75 |
YBC-12/80 | 8 | 8 | 12 | 1500 | 2000 | 2.8 | G5/8″ | G3/8″ | 1.75 |
YBC-20/80 | 16 | 8 | 12 | 1500 | 2000 | 4.6 | G5/8″ | G3/8″ | 1.75 |
YBC-30/80 | 20 | 8 | 12 | 1500 | 2000 | 5.8 | G1″ | G5/8″ | 4.75 |
YBC-45/80 | 31.5 | 8 | 12 | 1500 | 2000 | 9.2 | G1″ | G5/8″ | 4.75 |
YBC-60/80 | 40 | 8 | 12 | 1500 | 2000 | 11.7 | G1″ | G5/8″ | 5 |
YBC-12/125 | 8 | 12.5 | 16 | 2000 | 2500 | 3.9 | G5/8″ | G3/8″ | 1.75 |
YBC-16/160 | 8 | 16 | 20 | 2000 | 2500 | 5.6 | G5/8″ | G3/8″ | 1.75 |
YBC-30/160 | 20 | 16 | 20 | 1500 | 2000 | 11.5 | G1″ | G5/8″ | 4.75 |
YBC-35/160 | 25 | 16 | 20 | 1500 | 2000 | 14.7 | G1″ | G5/8″ | 4.75 |
YBC-45/160 | 31.5 | 16 | 20 | 1500 | 2000 | 18.1 | G1″ | G5/8″ | 4.75 |
YBC-60/160 | 40 | 16 | 20 | 1500 | 2000 | 23.4 | G1″ | G5/8″ | 5 |
