| Place of Origin: | SHIJIAZHUANG, CHINA |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | LDZ/S-200 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | polywood case |
| Delivery Time: | 5 working days |
| Supply Ability: | 1000 units per month |
| Application: | Test And Evaluate The Strength, Anchorage Force And Anchoring Quality In Roof Bolting | Rated Tension: | 200kN |
|---|---|---|---|
| Type: | Pointer Or Digital Display | Industry: | Roof Bolting Or Roof Suporting In The Underground Roadway |

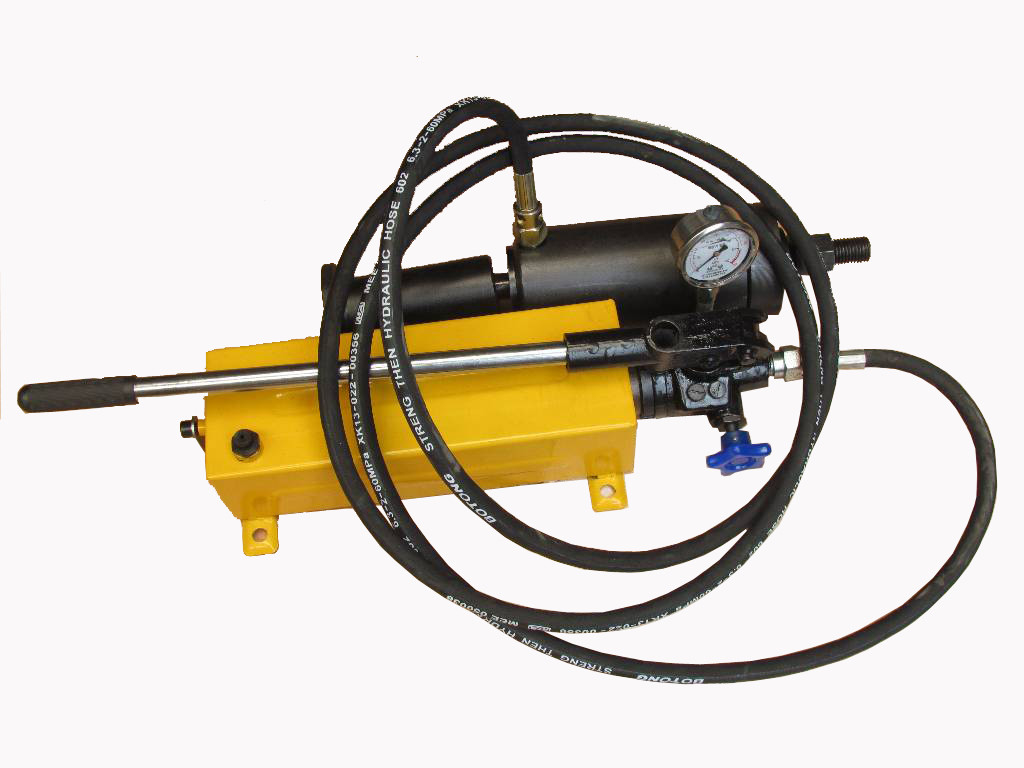

LDZ/S Anchor Tension Jack/Pull Test Kit for coal mine with rated tension force 200kN
Anchor Tension Jack/Pull Test Kit for coal mine is a specific instrument to test and evaluate the strength, anchorage force and anchoring quality in bolting with the features of small size, low weight, easy operation and reliable.
| Model | LDZ/S-100 | LDZ/S-200 | LDZ/S-300 | LDZ/S-400 | |
| Rated tension force(KN) | 100 | 200 |
300
|
400
|
|
| Rated pressure of jack(Mpa) | 60 | 60 | 60 | 60 | |
| Applicable anchor dia.(mm) | ￠14~￠24 | ￠16~￠24 | ￠18~￠27 | ￠20~￠30 | |
| Accuracy deviation of full range tension value | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |
| Type Z | pointer | pointer | pointer | pointer | |
| Type S | Digital display | Digital | Digital | Digital | |
| Measure range | 0~60MPA | 0~60MPA | 0~60MPA | 0~60MPA | |
| Accuracy grade | 1.5 | 1.5 | 1.5 | 1.5 | |
| Cylinder dia.(mm) | 55 | 75 | 95 | 105 | |
| Stroke (mm) | 60 | 70 | 70 | 80 | |
| Central hole distance(mm) | 22 | 28 | 28 | 32 | |
| Weight(kg) | 8 | 11 | 14 | 23 | |
| Piston bear pressure area cm² | 19 | 35 | 55 | 83 | |
| Rated working pressure(Mpa)(((((((Mpa) | 60 | 60 | 60 | 60 | |
| Oil tank capacity(L) | 4 | 4 | 4 | 4 | |
| Rated displacement of system(mL/time) | Low | 12.5 | 12.5 | 12.5 | 12.5 |
| High | 2.3 | 2.3 | 2.3 | 2.3 | |
| Type | Single port, manual | Single port, manual manual | Single port, manual | Single port, manual | |
| Hand force(N) | ≤500 | ≤500 | ≤500 | ≤500 | |
| weight(kg) | 11 | 11 | 11 | 11 | |
