|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Delivery Time:||3 days|
|Supply Ability:||30000 sets per year|
|High Output:||24V 360A||Light Weight:||20kgs|
|High Efficiency:||80% Or Greater||Warranty:||2 Years|

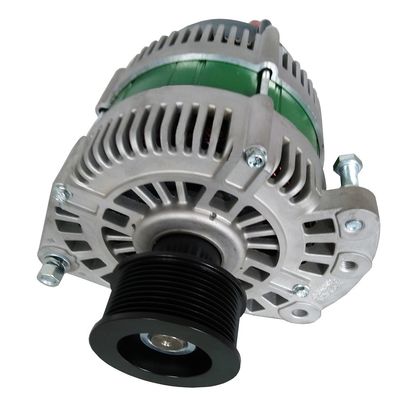

Compact design high amp 24V 360A alternator assembly for fire and rescue trucks
This high-amp alternator is widely used in the aftermarket on fire and rescue trucks. it is with compact design, small weight and size, so it can leave some space for other equipment. Emergency vehicles, whether police or ambulance, require high quantities of power in the engine. They also have to run more items such as flashing lights and emergency medical systems. In previous times, these vehicles used regular alternators but they needed to be replaced quite regularly. A high output alternator can handle high electrical demands and doesn’t need to be replaced as often.
At the same time, the high amp energency vehicle can output enough power at idle, it is very important.
High efficiency alternators translate to less engine horse power requirements, resulting in substantial fuel savings.
Optional groove pulley.
Compact design and light weight.
energy saving. more than 80 percent efficiency consume less fuel.
Built-in cooling: with dual internal fans and high-performance heat sinks, allowing the user to work these units hard without overheating or causing damage to other equipment.
Durability. Yuneng high output alternators withstand the harshest environments to deliver stable, dependable power.
Longer warranty duration: 2 years
|1.||Rotation (viewed from the driving end)||clockwise|
|3.||Rated rotation speed||
Max.working rotation speed: 9000rpm
|4.||Unloaded rotation speed:||
n=3000rpm, I=320A, U≥27V
voltage adjusting value: n=5000rpm, T=25℃, I=30A, U=28±0.5V, temperature compensation ratio: -4mV～-10mV/℃.
