Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane

Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane

    • Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane
    • Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane
    • Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane
    • Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane
  • Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane

    Product Details:

    Place of Origin: Shijiazhuang, China
    Brand Name: SHIMEI
    Certification: CCC
    Model Number: QYS-3.2III

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 8300
    Delivery Time: 5-8 working days
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Overlong Boom: 10.5m Lifting Capacity: 4 Tons
    Big Span: 2080-4300mm Feature: Solar Energy Alarm Device And Lighting For Night

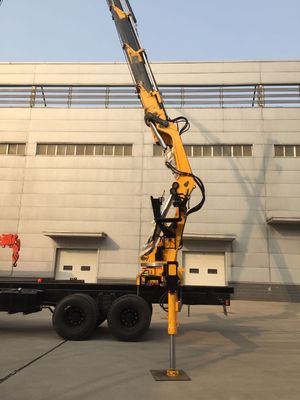

    Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane

    A truck-mounted crane has two parts: the carrier, often referred to as the lower, and the lifting component which includes the boom, referred to as the upper.

    We prodcue the stiff booed and knuckle boomed cranes which is mounted on the different truck chassis from different manufacturer. The truck can still be used to transport the materials instead of only a carrier of the crane.



    the crane can be noted as truck-mounted crane, loader crane, lorry crane.



    Besides lifting and lowering materials, the crane can have some very different functions by equipped some accessories, such as a petal grasper, or a rotary head to use as a drilling machine, shown as the following pictures.



    The newly developped crane is with some safety device, such as the light for night work, solar engery driven alarm device. and also can have a moment limiter to protect the crane as well as the operator.



    We produce a lineup of the cranes, telescopic boomed and knuckle boomed, the lifting capacity is from 1 ton to 20 tons.



    Besides mounted on the truck-chassis, the crane can be also mounted on the boat, in the workshop, the top of the tower. we have this experience to make a special design for the clients of India.



    Description Unit Value
    Max. lifting moment kN·m 1000
    Max. lifting capacity kg 4000(at 2.5m or less )
    Max. working radius m 10.5

    Max. lifting height

    (To mounting beam)

    m 11.3
    Luffing angle ° 0~75
    Swivel speed r/min ≤2.5
    Swivel angle ° ±360 continuous
    Rated working radius MPa 17
    Rated flow rate L/min 32
    Weight kg 1450



    Features:

    1. Overlong boom, the max. working radius can reach 10.5m, the lifting capacity is 4000kgs at 2.5m

    2. big outigger span to make a good steability and safety factors.

    3. integrate swivel, more soomth and low fault rate.

    4. good quality valve lock.

    5. solar energy alarn device to gurantee the safety.

    6. equipped with working light for the working at night.

    7. optional rear outigger.





    Manufacturer directly supply QYS-4III 4 sections telescopic boomed loader crane

    Model   QYS-3.2III
    Max. lifting moment kN 64
    Max. lifting weight kg 3200
    Max. lifting height m 11.2 (from mounting surface)
    Max. working radius m 10.5
    Luffing angle ° 0-75
    Swivel angle  ° clockwise and anti-clockwise 360
    Rated working pressure Moa 17
    Max. lifting height m 20
    Rated flow rate of hydraulic system L/min 30
    Sections of boom   5
    weight  kg 1300
    Sections of boom   4
    Outrigger span mm 2080-4300
    Optional rear outrigger    fixed, vertical telescopic, horizontal fixed
