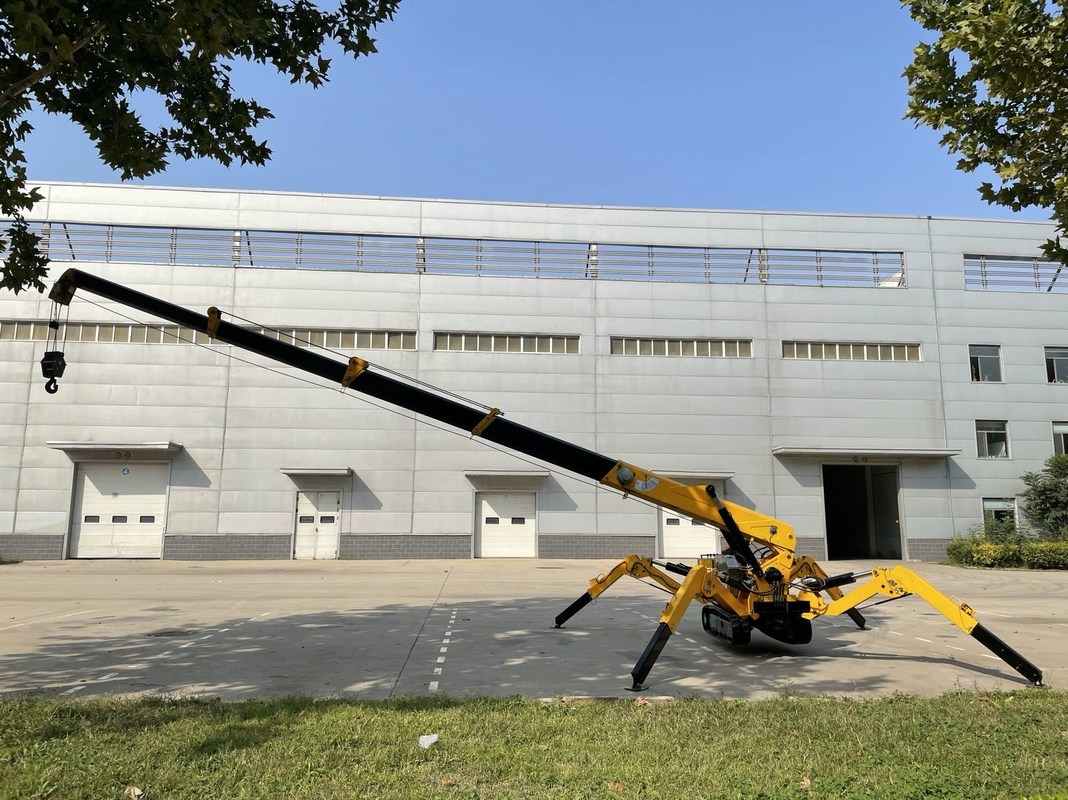

Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller

Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller

    • Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller
    • Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller
    • Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller
    • Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller
  • Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller

    Product Details:

    Place of Origin: China
    Brand Name: SHIMEI
    Certification: ISO CCC
    Model Number: QYZ60-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD80000
    Packaging Details: wooden case
    Delivery Time: 5 working days
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Lifting Capacity: 3 Tons At 1.3m Feature: Small Size, Agile To Move
    Power: Electric Motor And Diesel Machine

    Double power crawler spider Mini crane Max. 3 tons lifting capacity with remote controllerDouble power crawler spider Mini crane Max. 3 tons lifting capacity with remote controller

    crawler spider crane with Max. 3 tons lifting capacity



    Feature:

    Double powers: Janpan Yanmar 3TNV74 11.2kw diesel machine and AC380 7.5kw electric motor

    momnent limiter

    Intelligient screen

    Wireless proportional remote controller

    Interlock safty device among lifting, outrigger, and trevelling

    Outrigger location monitor

    Anti- overturn device

    Telescopic traveling device

    Manual and remote controlled opeartion

    Overwind alarm

    Double speeds traveling motor

    3 colors alarm lamp



    very agile to move.

    small size

    used in the narrow space, indoor.

    the crawler is friend to the floor. No hurt to the indoor floor.

    lifting capacity: 3000kgs at 1.3m, 2400kgs at 2.5m



    Specification:




    Max. lifting moment           kN.m 60
    Max. lifting capacity          kg 3000
    Max. working radius      m 9.6
    Luffing angle      ° 0-80
    Slewing angle      ° 360 continuous
    Outrigger span      m 4.5m(long)*4m(front)*4.8m (rear)
    Traveling speed     km/h 0-2.2km/h( diesel) 0-1.7 km/h (motor)
    Gradient     ° 20 (36%)
    Ground pressure      Kpa 47
    Working pressure of hydraulic system      Mpa 16
    Weight    kg 2900
