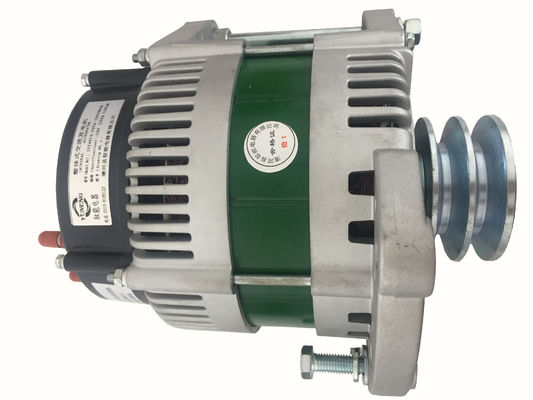

56V 200A alternator assembly for refrigerator car electric air conditioner

56V 200A alternator assembly for refrigerator car electric air conditioner

    • 56V 200A alternator assembly for refrigerator car electric air conditioner
    • 56V 200A alternator assembly for refrigerator car electric air conditioner
    • 56V 200A alternator assembly for refrigerator car electric air conditioner
  • 56V 200A alternator assembly for refrigerator car electric air conditioner

    Product Details:

    Place of Origin: China
    Brand Name: Yuneng
    Certification: ISO CCC
    Model Number: JFZ5910-20ZA-8K81BD46

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD1000
    Packaging Details: carton
    Delivery Time: 5 working days
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Features: 2 Years Warranty Application: Refirigeratior Car, LCD Advertising Vehicle
    Power: 56V 200A Quality: Good Quality

    We produce the high output alternators:
    70V 150A,
    56V 250A, 200A, 150A, 130A, 90A, 50A
    28V 360A. 350A, 300A, 280A, 240A, 180A, 150A, 120A, 110A, 100A
    When you make an enquiry to our  alternator,  We will send you our drawing for your confirmation.
    56V 200A alternator assembly for refrigerator car electric air conditioner56V 200A alternator assembly for refrigerator car electric air conditioner56V 200A alternator assembly for refrigerator car electric air conditioner

    56V 200A

    1. Rotation: clockwise (viewed from the driving end)

    2. Working temperature: -40 ℃~85℃

    3. Rated rotation speed: 6000rpm,

    Max. working rotation speed: 8000rpm

    4. idle speed: n≤1400rpm

    n=3000rpm/min, I=185A, u≥54V

    voltage adjusting valve: n=600rpm, T=25℃, I=10A, U=55±1V,

    temperature compensation ratio: -4mV~-10mV/℃.

    5. After assembly, the alternator runs agile without abnormal noise, parts in right position.

    6. The alternator and batters work in parallel, have to run under load.

    7. When the whole vehicle is being welded, all external wiring of the alternator must be disconnected.

    8. Tightening torque of the nut in the outer of terminal is 0.5-1N.m

    9. The total load at the center of the pulley must not exceed 2000N.

    10. The runout of the pulley groove working surface to alternator center is not greater than 0.5.

    11. The tightening torque of the pulley nut is12±22.4N.m

    12. Appropriate fuse must be installed between the output of the alternator and the load (including battery)

    13

    Description Parameter
    rotation clockwise (viewed from the driving end)
    working temperature -40 ℃~110℃
    rated rotation speed 6000rpm,
    Max. working rotation speed 9000rpm
    unloaded speed n≤1350rpm n=3000rpm, I=200A, U≥27V
    voltage adjusting valve n=6000rpm, T=25℃, I=10A, U=28±0.3V
    temperature compensation ratio -4mV~-10mV/℃
    rectifier structure 11 tubes

    . The neutral output current is not more than 2A
