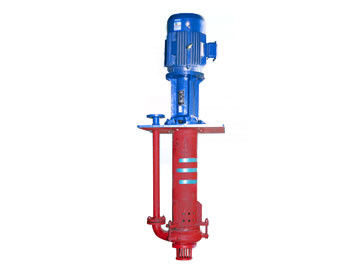

Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal

Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal

    • Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal
    • Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal
    • Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal
  • Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal

    Product Details:

    Place of Origin: industry pump
    Brand Name: Vertical Desulfurization Pump
    Model Number: Vertical Desulfurization Pump

    Payment & Shipping Terms:

    Minimum Order Quantity: slurry pump
    Price: pump for slurry
    Contact Now
    Detailed Product Description
    Material: High Chrome Cast Iron Alloy Feature: Anti-abrasion Corrosion Resistant
    Usage: SO2 Removal

    Vertical Flue-gas Desulfurization Slurry Circluation Pump for fossil-fuel power plant SO2 Removal

    Product Description

    Flue-gas desulfurization Pump (FGD) is a set of technologies used to remove sulfur dioxide (SO2) from exhaust flue gases of fossil-fuel power plants, and from the emissions of other sulfur oxide emitting processes such as waste incineration. One of its core equipment is the FGD RC Pump. The FGD RC pump manufactured by Shijiazhuang Industrial Pump Factory Co., Ltd. is designed with horizontal, single-case, single-stage, single suction, bracket or suspension type structure. All wet-end parts are made of high chrome alloy material GLH-5 and GLH-6(equivalent to A49). According to the technical scheme, by adopting optimized structural design and special modified materials, abrasion and corrosion resistance of the desulphurization pump can be achieved, and the service life of the desulphurization pump is prolonged.

    Pump Features

    The series medium horizontal desulphurization pump offer the special features of being high in efficiency, long in service life, reliable in operation.

    The wet parts are made of chrome-nickel alloy with high abrasive and corrosive resistance. The clearance between cryween crystalline is very small; so the material has the ability of inter crystalline crack resistance under corroded by chlorion and high mechanical strength.

    The series desulfurization pumps can operate reliably lest the or nonmetallic pumps appear fragment, avulsion and distortion.

    The hydraulic loss coefficient is small. The hydraulic efficiency of DT series desulfurization pumps is higher 3% than that of other pumps with the same parameters.

    - Single stage, single suction, vertical centrifugal pump
    - Wet parts such as casing, impeller, liner plate in anti-abrasion and corrosion-resistant high chrome cast iron alloy.
    - For fluid of high concentration, inlet agitator is designed
    -According to the depth of the pit, suction pipe can be added to the pump inlet.
    - Hydraulic optimization design and stable operation

    Performance and Main Technical Datas of TL Desulphurizations Pumps

    Vertical Corrosion Resistant Flue-gas Desulfurization Slurry Pump for fossil-fuel power plant SO2 Removal





    Type
    Allowable
    max.power of
    ass.motor(kW)
    Clear water
    performance
    Particle max.
    Size handled
    occasionally
    (mm)
    Pump weight
    (kg)
    Q
    Capacity
    (m3/h)
    H
    Head
    (m)
    n
    Speed
    (r/min)
    Max.eff.
    (%)
    (NPSH)r
    (m)
    150TL-A35
    30
    99-364
    3.0-17.9
    490-980
    69.0
    /
    15
    712
    100TL-A34
    45
    74-293
    5.5-36.8
    700-1480
    65.8
    /
    14
    502
    80TL-A45
    110
    59-286
    12.5-81.6
    700-1490
    58.4
    /
    15
    785
    80TL-A36
    45
    50-201
    7.3-45.5
    700-1480
    58.2
    /
    12
    645
    65TL-A40
    45
    30.2-142.8
    10.2-62.6
    700-1480
    50.0
    /
    12
    658
    65TL-A30
    18.5
    18-98
    5.9-34.7
    700-1470
    53.7
    /
    8
    436
    50TL-A45
    55
    21.9-117.3
    10.4-78.4
    700-1480
    39.9
    /
    9.5
    778
    50TL-B40
    30
    15-65
    8.6-58.3
    700-1470
    34.1
    /
    9
    502
    50TL-A35
    22
    19-87
    6.8-45.3
    700-1470
    48.1
    /
    15
    498
    40TL-A35
    18.5
    9.4-47.6
    7.2-43.9
    700-1470
    38.7
    /
    7
    524
    40TL-B25
    5.5
    4.9-22.9
    3.9-21.5
    700-1440
    37.6
    /
    8
    225
    40TL-A21
    4
    4.6-25.9
    3.3-17.0
    700-1440
    44.6
    /
    10
    210
    25TL-A15
    5.5
    4.3-19.3
    3.9-30.8
    1390-2900
    29.8
    /
    8
    195



    Note:
    1.(NPSH)r refers to the value at the specified point at the second speed in the sample book.
    2.The normal size of particle handled is 56% of the max.size that can be handled occasionally.

    Application:

    -Pit pump for pumping sewage in desulphurization system of power plant
    -other corrosion and abrasion condition
