| Usage: | People Transportation In The Underground Coal Mine | Type: | FLP Type |
|---|---|---|---|
| Alternatvie Name: | Underground Transport System | Feature: | Running On The Special Rail |
| Structure: | Special Clamping System |

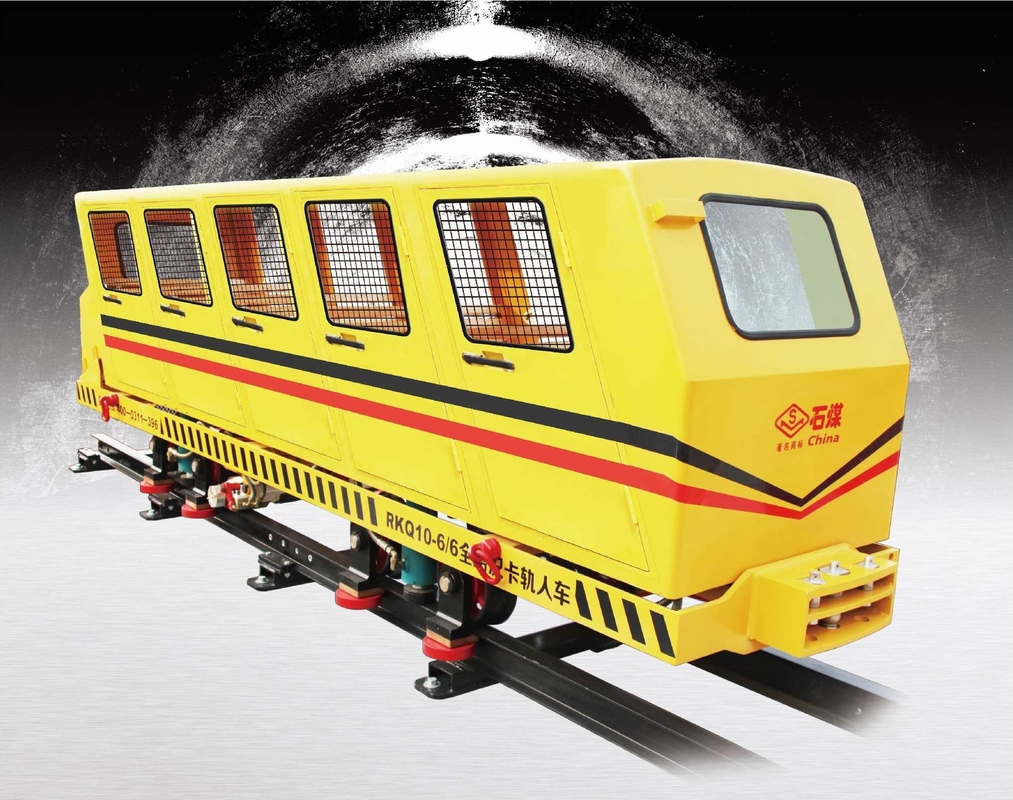

FLP Coolie Car for Person on Special Rail for the underground coal mine
RKQ Coolie car is a kind of man car traveling on the special shaped track rail, braking by clipping method, which will never slip from the rack, not rollover. It is special for the man transportation inthe long-distance tunnel with big slope and many ups and downs.
The braking method is clip-rail and multi-car brake linkage, braking deceleration is a ≤ 5m / s, can be manually braking or automatic braking when over speed, braking distance is short, the impact is small, safe and reliable, it is a ideal new security equipment to transport personnel in the underground coal mines.
| Description | unit | model | ||
| RKQ10-6/6 | RKQ15-6/6 | RKQ15-9/6 | ||
| Passenger No. | person | 10 | 15 | 15 |
| Max. towing force | kN | 60 | 60 | 60 |
| Braking force | kN | 24 | 30 | 30 |
| Max. traveling speed | m/s | 3.9 | 3.9 | 3.9 |
| Speed limit | m/s | 4.49 | 4.49 | 4.49 |
| Applicable gradient | ° | 0~30 | 0~30 | 0~30 |
| Horizontal turning radius | m | ≥7.5 | ≥7.5 | ≥7.5 |
| Vertical turning radius | m | ≥15 | ≥15 | ≥15 |
| Track rail shape | SMJ140/SMJ150/SMJ160 SPECIAL SHAPE RAIL | |||
| Rail gauge | mm | 600 | 600 | 900 |
| Overall dimensions | mm | 4160×1040×1670 | 4600×1200×1700 | 4600×1350×1700 |
| Weight | kg | 2000 | 2400 |
2500
|
The power can be diesel machine or electricity, or endless cable winch.
If the gradient is less than 5°, the rail can be common type to reduce the cost.
