| Place of Origin: | China |
| Brand Name: | SHIMEI |
| Certification: | MA, ISO |
| Model Number: | CMZY2-75/17Y |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD80000 |
| Packaging Details: | cartons and container |
| Delivery Time: | with 30 days from the order date |
| Payment Terms: | T/T and L/C |
| Supply Ability: | 300 Units per year |
| Minimum Order Quantity: | 1 |
| Application: | Underground Roadway Tunneling | Feature: | Integrate Driller Loader Bolter In One Machine |
|---|---|---|---|
| Advantage: | High Speed Drilling 2m/s | Time Saving: | Save Passing Time Of Loader And Driller |

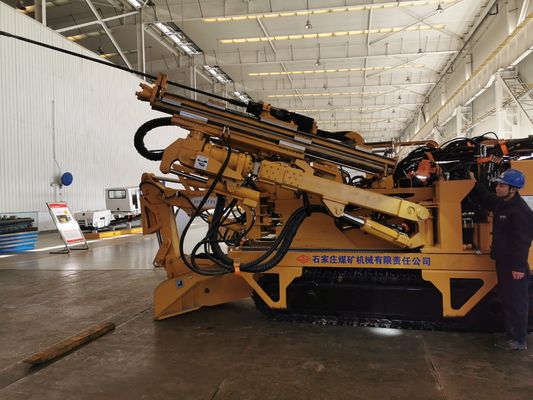

Blasting hole drilling material cleaning and loading anchor hole for roof supporting drilling driller loader bolter
It is a kind of complicated drilling and loading and bolting machine for coal mines, it is mainly used for the tunneling of rock lanes, also can be used in the operation of railway tunnels, water tunnels or national defend tunnels, it can improve the tunneling speed greatly.
High efficiency, high drilling speed, small drilling bit comsumption.
Double boomed drilling, good maneuverability, six actions of booms, can drill at any position.
Gather the rocks by backhoe bucket to the conveyour, the bucket can also be used to clean the working seam, big propelling force, big gathering scope.
Middle or High pressure hydraulic system bilateral symmetry oil circuit, good protection to the system.
Wireless remote control system is available, also can be manually operated.
Chair, cap gas alarm, electricity cutting when overload, which all reduce the labor strength.
Flameproofed, can used in the underground coal mine with gas
Double boomed drilling, good maneuverability, six actions of booms, can drill at any position.
Gather the rocks by backhoe bucket to the conveyour, the bucket can also be used to clean the working seam, big propelling force, big gathering scope.
Driller Loader Bolter is a kind of complicated drilling and loading machine for coal mineit is mainly used for the tunneling of rock lanes,also can be used in the operation of railway tunnels,water tunnels or national defend tunnels, it can improve the tunneling speed greatly.
Double boomed drillinggood maneuverability,six actions ofbooms,can drill at any position.The drill arm has fine tuning function to achieve accurate eye finding and positioning.Double telescopic sliding frame,short drilling arm,good tunnel adaptability.Wet drilling, fast drilling speed, no dust hazard.Chaircapgas alarm,electricity cutting whenoverload,which all reduce the labor strength. The main hydraulic parts are imported parts, high reliability.
According to testing report, the driling speed can reach 2m within 1 minutes at 130Mpa stone.
OEM acceptable, new functions such as bolting for the roof support can be added.
| 产品型号Type | CZMY2-75/17Y | CZMY2-75/27Y |
| 钻孔断面 Drilling Saction ( m2) | 17 | 20 |
| 凿岩范围 Drilling Scope(宽×高)(mm) | 4000 ×3900 | 6000×3900 |
| 结孔直径Drilling Dia.( mm ) | φ27~φ43 | φ27~φ43 |
| 钻孔速度Drilling Speod ( m/min ) | 0.8- 2 | 0.8- 2 |
| 钻孔深度Drilling Dope | 2130 | 2130 |
| 挖掘范围Gatherirg Scope(宽×高)( mm ) | 3500×3000 | 3800×3200 |
| 挖取距离Excavating Distance(mm ) | 2200 | 2500 |
| 装载能力Loading Capacity ( m/h ) | 100 | 150 |
| 刮板链速度Scrspor Chain Spaed ( m/s ) | 0-0.7 | 0.3-0.5 |
| 锚杆孔直径Bolt Hole Damatar ( mm) | φ27 | φ27 |
| 锚杆孔深度Bolt Hole Depth ( mm ) | 0-10 | 0-10 |
| 爬坡能力Gradient(° ) | ±20 | 16 |
| 电机功率Motor Powor (kW) | 75 | 75 |
| 外型尺寸Drmensions ( mm ) | 8500x1650×2100 | 9300×1910(2100 ) ×2200 |
| 整机质量Weight(t) | 22 | 30 |
