| Place of Origin: | China |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | ZC6000/21/42 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD4Million |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set per year |
| Feature: | With Backfill Function | Supporting Strength: | 0.5MPa |
|---|---|---|---|
| Working Resistance: | 6000 KN | Support Height: | Min. Height 1.5m, Max. Height 3.2m |
■ Product introduction:
● In recent years, fully mechanized backfill mining technology has been rapidly applied in many mining areas across China, achieving significant economic and social benefits. Our factory, as the Equipment R&D Center of the National Energy Key Laboratory of Backfill Mining Technology, relying on the technical requirements of Jizhong Energy Group's mines, has carried out multiple scientific and technological research initiatives focusing on roadway and working face backfill technology. It has obtained two provincial and ministerial-level scientific and technological awards, and possesses nine utility model patents and two invention patents. The self-developed self-advancing roadway backfill machine achieved mechanized continuous backfilling in roadways for the first time; the developed ZC5160/30/50 type gangue backfill and ultra-high water content backfill hydraulic supports were applied in Xingdong Mine, filling the gap for 5-meter full-seam-height backfill hydraulic supports both domestically and internationally, while also establishing China's first intelligent backfill mining working face; the developed ZC6200/15/28 type gangue backfill hydraulic supports provided equipment guarantee for the construction of what is currently China's longest 150-meter thinner seam gangue backfill mining working face at Guxian Jingu Coal Industry, achieving excellent application results.
Features:
The supports must conform to the patterns of mine pressure manifestation during backfilling operations.
The supports must possess sufficient load-bearing capacity to control roof subsidence.
The supports must exhibit no weak points in their load-bearing structure.
The front and rear spaces of the supports must be independent, enabling parallel operations.
Supporting strength: 0.5MPa
Working resistance: 6000 kN
Support height: Minimum height 1.5m Maximum height 3.2m
■ Technical Parameters
|
Model
Parameter |

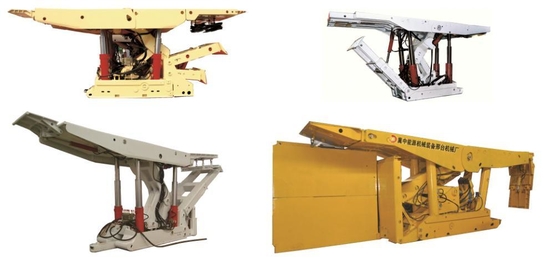

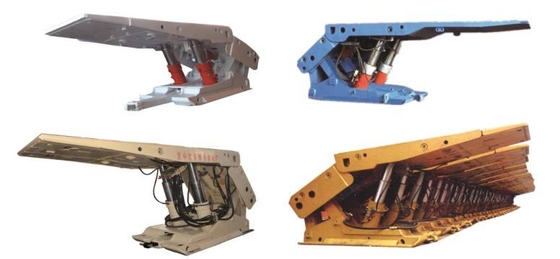

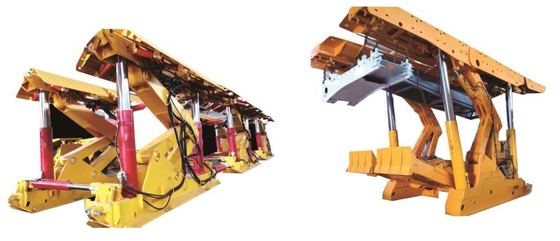

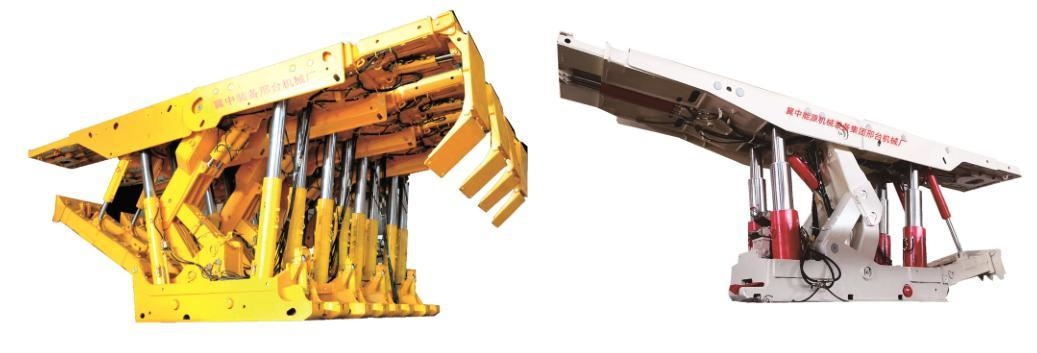

Backfill Hydraulic Support | ||||||
|
ZC6000/21/42 (High Water Content) |
ZC4800/16/32 (Bulk Material) |
ZC3070/18/34 (Bulk Material) |
ZC6000/18/38 (Bulk Material) |
ZC3670/18/34 (Bulk Material) |
ZC5160/30/50 (High Water Content, Bulk Material) |
ZC6200/15/28 (Bulk Material) |
|
| Support Height (m) | 2.1 4.2 | 1.6 3.2 | 1.8 3.4 | 1.8 3.8 | 1.8 3.4 | 3.0 5.0 | 1.5 2.8 |
| Support Center Distance (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 |
| Working Resistance (Pa) | 6000 | 4800 | 3070 | 6000 | 3670 | 5160 | 6200 |
| Initial Supporting Force (kN) | 5235 | 3956 | 2616 | 5235 | 2853 | 3878 | 5064 |
| Support Strength (MPa) | 0.5 | 0.6 | 0.66 | 0.5 | 0.6 | 0.66 | 0.9 |
| Floor Specific Pressure (MPa) | 1.31 | 1.84 | 1.34 | 1.31 | 1.34 | 2.69 | 3.2 |
| Adaptable Dip Angle (°) | ≤15° | ≤15 | ≤15° | ≤15 | |||
| Pushing Force/ Pulling Force (KN) | 529/801 | 361/633 | 529/801 | 529/801 | 528/801 | 633/*/* | 361/633 |
| Support Advance Step (mm) | 700 | 600 | 600 | 700 | 600 | 800 | 600 |
| Pump Station Pressure (MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Application Mine | Jizhong Taoyi Mine | Jizhong Xingtai Mine | Jizhong Xingtai Mine | Jizhong Guoerzhuang Mine | Jizhong Xingtai Mine | Jizhong Xingdong Mine | Jizhong Jingu Mine |
