| Place of Origin: | China |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | EBZ100 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 208,300 |
| Packaging Details: | polywood case |
| Delivery Time: | within 30 days from contract date |
| Payment Terms: | L/C or T/T |
| Supply Ability: | 300 units |
| Minimum Order Quantity: | 1 |
| Small Size: | 8430 ×2000×1560mm | Cutting Power: | 100kW |
|---|---|---|---|
| Total Power: | 181kW | Application: | Tunneling In The Underground Coal Mine |
| High Light: | roadheader,header,excavator |
||

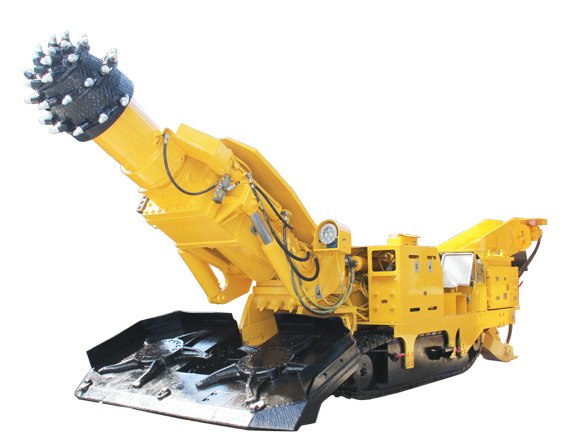

This machine is a boomed type tunneling machine for the underground coal mine with the cutting, loading and traveling functions.
It is mainly used in the coal or half rock and coal roadways.
Features:
1. Electric and hydraulic transmission
2. compact structure, easy operation, reliable and stable running.
3. the layout of the cutting bits is reasonable, good for the breaking through the fault.
4. the rotation and up and down movement can be achieved simultaneously.
5. the main hydraulic components are from the international brands with stable performance and high efficiency.
6. exterior and interior water spray system to reduce the dust.
7. swithches for roof bolters is optional.
|
Type
|
EBZ100
|
|
weight(t)
|
30
|
|
overall dimension (L×W×H)
|
8430×2000×1560
|
|
Power(kW)
|
181
|
|
Power station(kW)
|
55
|
|
Cutting power(kW)
|
100
|
|
Cutter speed(rpm)
|
50
|
|
Telescopic length(mm)
|
500
|
|
Width of Apron (mm)
|
2800
|
|
Max. height(mm)
|
3800
|
|
Max. width(mm)
|
5000
|
|
Rock hardness
|
≤60
|
|
Traveling speed(m/min)
|
0~5.3
|
|
Width of track shoes(mm)
|
500
|
|
Ground pressure ration (Mpa)
|
0.128
|
|
Load type
|
Separate spider
|
|
Voltage(V)
|
660/1140
|
|
Applied tunnel Gradient
|
±16°
|
