1. The trailer drill has a high degree of integration, and the moving transition is fast;
2. The drilling rig adopts tandem double winch, planetary transmission, and structural knotting; It can make the main rod not to be
put down and not to take off the hook, so as to realize unmanned operation on the tower, save auxiliary time, and improve drilling
efficiency.

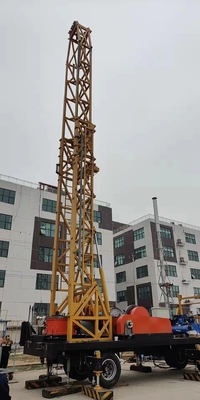

3. Folding drill tower is adopted, with strong bearing capacity and short transportation length. Transitions don't need to be folded.
4. Flip outriggers are adopted, the outriggers have a large span, strong anti-overturning torque, and are equipped with mechanical
outriggers to ensure safe and reliable support.
5. The drilling rig adopts gear transmission as a whole, which has stable transmission, low noise and high reliability.
6. The clutch of the drilling rig adopts a pneumatic tire clutch, which has a simple structure and high reliability.
7. The turntable of the drilling rig adopts one-stage gear transmission, large module gear, and is impact-resistant.
8. The hydraulic system adopts an independent pumping station, with a rated pressure of 16MPa, a stable landing tower and high
reliability.

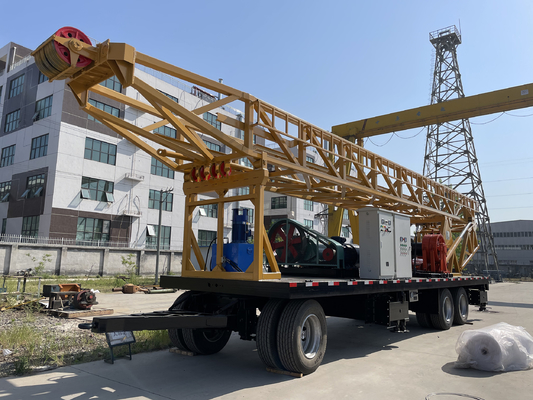

9. The trailer drilling rigTrailer-mounted drilling rig is mainly composed of the following parts:
a gearbox; a clutch; a tandem double winch; a turntable; a folding drill tower; a trailer chassis; a mud pump; a hydraulic
system; an assistive device;
