| Place of Origin: | China |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | CMS1-5600/75 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD100000-USD150000 |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 set per week |
| Application: | Underground Coal Mine Deep Hole Drilling | Structure: | Single Boom |
|---|---|---|---|
| Drilling Dia.: | φ75-φ250 | Drilling Depth: | 300m |
Soft coal seam drilling and extraction complete sets of technical equipment
Soft outburst coal seam drilling and gas extraction is an industry problem, due to poor permeability of coal seam and gas pressure, drilling process is prone to collapse, stuck drill buried drill and
The phenomenon of gas injection hole leads to low efficiency of gas extraction and long drainage cycle, which seriously affects the safety production of coal mines. In view of this problem, the lower screen pipe gas extraction worker can be used.
Art technology, and in order to ensure the effective lowering of the screen, we directly lower the screen without returning the drill after hole forming. The process uses large diameter wide guide vane drill pipe or screw.
Drilling tools such as rotary grooved drill pipe and large and large hole open-close drill bit realize the lowering of screen pipe in the full hole section of the inner hole of the drilling tool, effectively ensuring the lowering rate and greatly increasing the gas extraction efficiency.
Rate.
Complet set of equipment
| S.N |
complete set of equipment for drilling and extraction in soft coal seam |
Note |

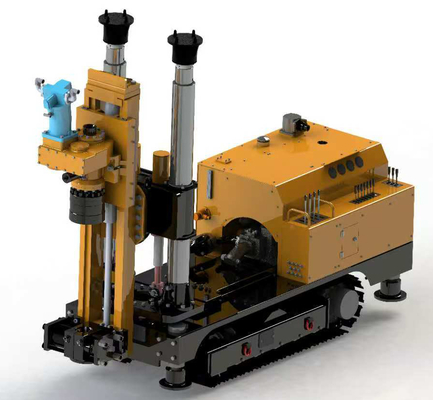

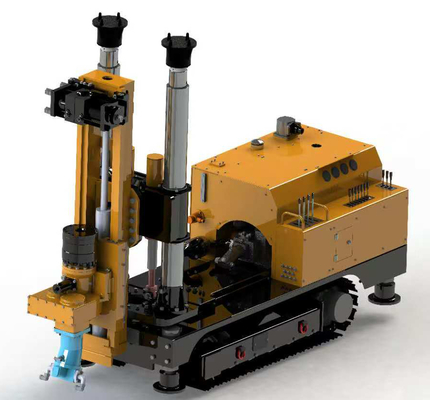

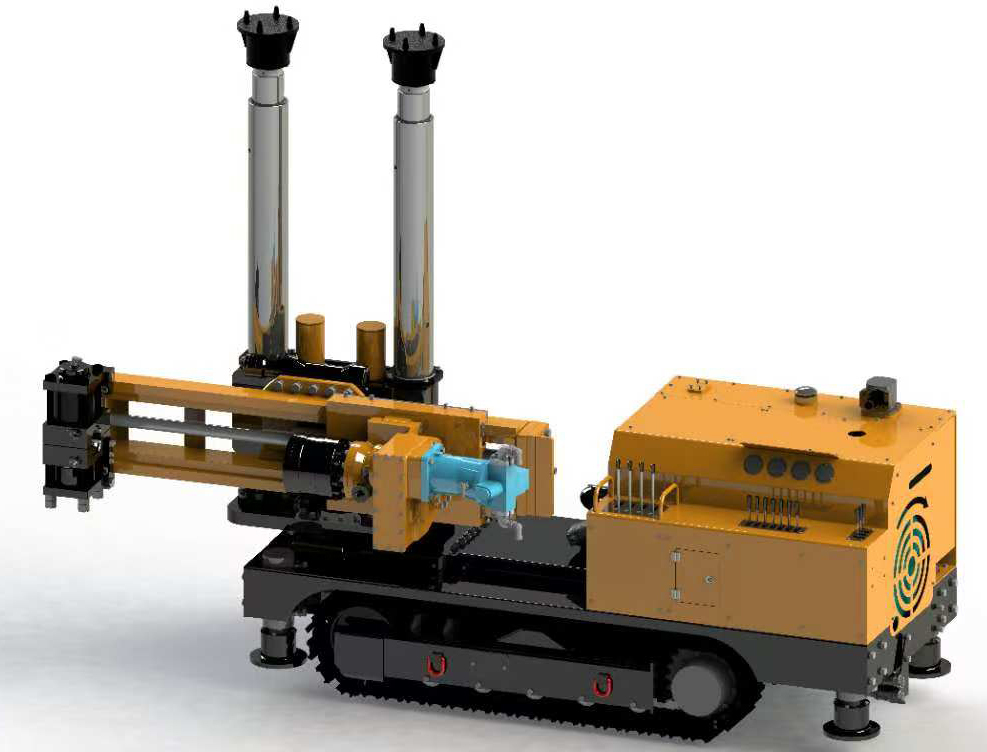

| 1 | CMS1 lineup deep hole drilling rig for coal mine | Refer the below informaiton |
| 2 | Large diameter fluted auger rods or wide guide vane auger rods | Refer the following information |
| 3 | Through-hole open and closed drills | Refer the following information |
| 4 | Fixing device | Refer the following information |
| 5 | Antistatic flame retardant sieve tube |
Main specification of CMS1 series drilling rigs
| Model | Unit | CMS1-5600/75 | CMS1-6500/75 | CMS1-8000/90 |
| Max. drilling torque | N • m | 5600 | 6500 | 8000 |
| Drilling dia. | mm | 75-250 | 75-250 | 89-250 |
| Designed drilling depth | m | W500 | <500 | <600 |
| Drilling tools | mm | ¢63.5.73(special design,89) | ¢63.5,¢73(special design,89) | ¢89 ¢73 |
| Pulling stroke | mm | 850 | 850 | 850 |
| pushing/pulling force | kN | 160 | 160 | 160 |
| Pushing speed | m/min | 0-5 | 0-5 | 0-5 |
| Pitch angle | 〇 | ±180 | ±180 | ±180 |
| Rotation angle | 〇 | ±180 | ±180 | ±180 |
| Horizontal lift height | mm | 1000 | 1000 | 1000 |
| Installed power | kW | 75 | 75 | 90 |
| Transport state dim. (LxWXH) | mm | 3310x1200x2500 | 3310x1200x2500 | 3310x1200x2500 |
| Weight | kg | 6500 | 6800 | 7200 |
