| Place of Origin: | China |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | ZLJ350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000 |
| Packaging Details: | No package |
| Delivery Time: | 5 working days |
| Supply Ability: | 10 set per week |
| Drilling Depth: | 150m | Hole Dia.: | 89mm |
|---|---|---|---|
| Power: | Electric Motor | Feature: | Crawler Type |

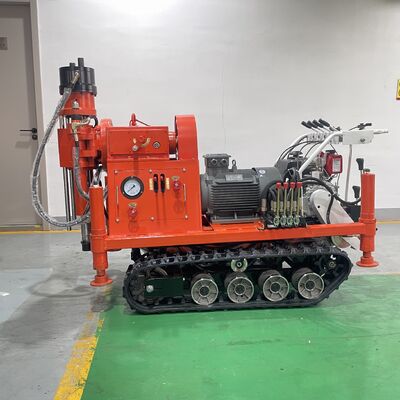

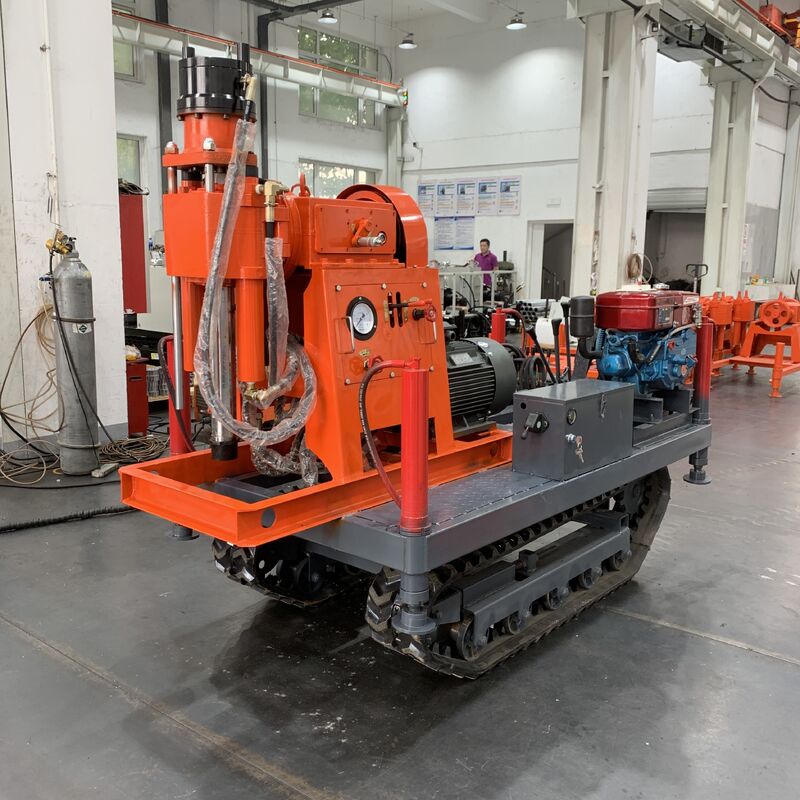

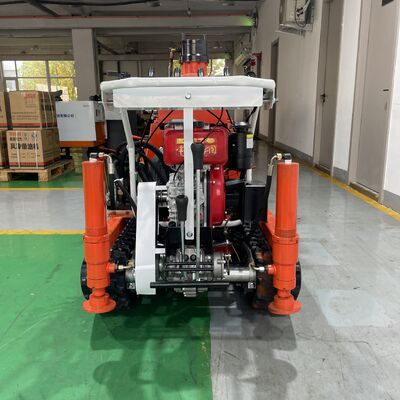

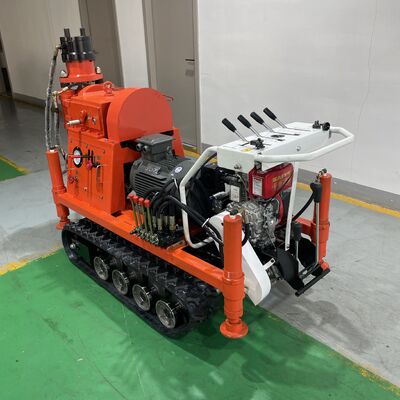

YHZJ-1500L crawler type electric motor driven grouting reinforcement engineer drilling rig
Product Overview
The YHZJ grouting drill rig excels in deep well applications (over 50 meters) with superior cuttings removal capacity compared to pump suction or jet reverse circulation rigs. It is thus ideal for deep wells, arid regions with water scarcity, and frozen ground strata in cold zones. Primary applications include grouting reinforcement, reinforcement drilling with grouting, subsidence grouting for highway subgrades, railway subgrade stabilization, subgrade reinforcement, and building grouting.
Scope of Application
Suitable for grouting holes, cable conduits, pile sonic testing holes, and core sampling holes in projects such as subways, airports, expressways, high-speed railways, building reinforcement, and ground surveys.
Product Details
1. Rotary Assembly: Housing and components machined in one operation on CNC centers, ensuring excellent interchangeability.
2. Gears: Meshing clearance guaranteed ≤10μm.
3. Relief valves, multi-way directional valves, and throttle valves supplied by leading domestic manufacturers.
4. Gripper jaws: Forged from bearing steel with hardness exceeding 60 HRC for enhanced wear resistance and extended service life.
5. Hoses supplied by renowned manufacturers meeting coal mine safety standards. 6. Drill rig chassis customizable to meet specific customer requirements.
| Parameters | unit | Value | ||
|
Rated rotation speed |
High gear |
r/min |
370 | |
| Medium speed | 215 | |||
| Low gear | 120 | |||
|
Rated torque |
High gear |
N ·m |
110 | |
| Medium speed | 190 | |||
| Low gear | 350 | |||
| Push/pull pressure | MPa | 8 | ||
| Rated pushing force | KN | 30 | ||
| Rated pulling force | KN | 42 | ||
| Pushing stroke | mm | 400 | ||
| Drilling angle | ° | 0～360 | ||
| Drilling rod dia. | mm | Φ42 | ||
| Noise pressure | db(A) | ≤92 | ||
| Rated pressure of the oil pump | MPa | 12.5 | ||
| Rated flow rate of the oil pump | L/min | 20 | ||
| Electric motor model | -- | YBK3-132S-4 | ||
| Rated power of the motor | kW | 5.5 | ||
| Rated rotation speed of the motor | r/min | 1460 | ||
| Rated voltage of the motor | V | 380/660 | 660/1140 | |
| Rated current of the motor | A | 11.6/6.7 | 6.7/3.8 | |
| Effective volume of the oil tank | L | ≥16 | ||
| Overall dim. (L×W×H) | mm | (1300×640×1250)±50 | ||
| weight | Kg | 460±20 | ||
|
Traveling |
Traveling mode |
--- |
Crawler type |
|
Travel gear box |
Four-speed |
||
|
Travel diesel |
|
CF1105 |
|
|
Traveling speed |
m/min |
35 |
|
|
Gradeability |
° |
20 |
|
