| Place of Origin: | Shijiazhuang |
| Brand Name: | SHIMEI |
| Model Number: | SPT-900SE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD200000 |
| Delivery Time: | 5-8 working days |
| Supply Ability: | 4 UNITS PER WEEK |
| Name: | Trailer-mounted 900m Drilling Rig | Application: | Drilling Construction Of Water Wells, Hydrological Exploration Holes, Grouting Holes, Shallow Coalbed Methane Holes, Etc. |
|---|---|---|---|
| Using Country: | Uzbekistan | Power Resource: | Electric |
| 型 号 type | SPT-900SE |
| 钻孔深度 Drilling depth(φ89) (m) | 900 |
| 转盘通径 Turntable diameters (mm) | φ600 |
| 转盘最大扭矩 Maximum torque turntable (kN.m) | 12 |
| 转盘转速(正反转) Rotary speed (r/min) | 43,69,101,139 |
| 主卷扬最大提升力 Main hoist maximum lifting capacity(kN) | 50 |
| 副卷扬最大提升力Vice hoist maximum lifting capacity (kN) | 50 |
| 提升速度 Lifting speed (m/s) | 0.9,1.4,2.9 |
| 液压系统额定压力Hydraulic system rated pressure (Mpa) | 20 |
| 配套泥浆泵型号 Type of mud pump | 3NB-130 |
| 主动钻杆Main drill (mm) | 108×108×10500 |
| 送水器负荷Feeding water device load (t) | 36 |
| 钻塔有效高度Rig working height (m) | 15.3(折叠式) |
| 钻塔额定负载 Rig rated load (t) | 50 |
| 钻机电动机组功率 Drilling machine motor power (kW) | 75 |
| 泥浆泵电动机组功率 Mud pump motor unit power (kW) | 90 |
| 空压机电动机组功率 Air compressor motor unit power (kW) | 7.5 |
| 液压泵站电动机组功率 Hydraulic power unit of electric power unit(kW) | 7.5 |
| 运输状态外形尺寸The dimension of during transport (m) | 14.6×3.2×4 |
| 工作状态外形尺寸The workof during transport (m) | 13.5×4.2×17.9 |
| 整体质量 Total weight (t) | 30 |

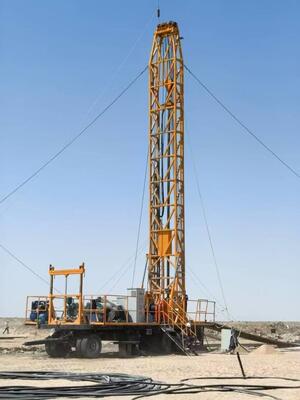

1. SPT-900 SE Trailer-mounted drilling rig use and characteristics
1.1 Design Concept and Use:
SPT-900 SE Trailer-mounted drilling rig is a new type of trailer drill developed for the construction characteristics of "underground leaching uranium well". It is designed with the concept of simplicity, reliability, economy and practicality. The characteristics of the machine: high integration, fast transition, folding drill tower, double winch, double swimming system, main rod does not fall down.
It is mainly suitable for drilling various complex formations such as Quaternary loose strata, gravel strata and bedrock, with a drilling depth of 900 meters (89 drill pipes). It is also suitable for drilling construction of water wells, hydrological exploration holes, grouting holes, shallow coalbed methane holes, etc.
1.2 SPT-900SE Trailer-mounted drilling rig Features:

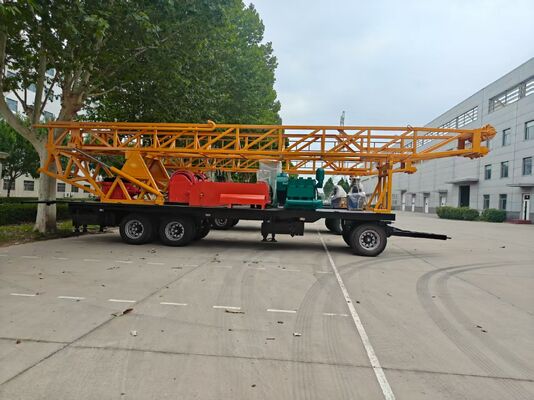

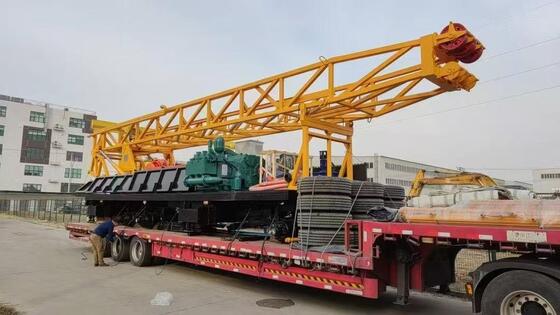

1.2.1 The trailer drill has a high degree of integration, and the moving transition is fast;
1.2.2 The drilling rig adopts tandem double winch, planetary transmission, and structural knotting; It can make the main rod not to be put down and not to take off the hook, so as to realize unmanned operation on the tower, save auxiliary time, and improve drilling efficiency.

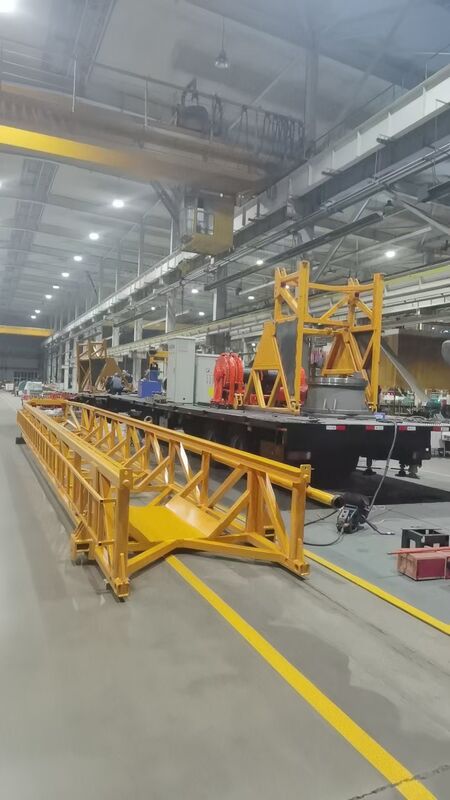

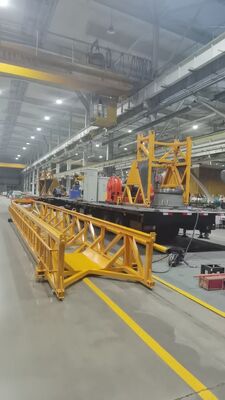

1.2.3 Folding drill tower is adopted, with strong bearing capacity and short transportation length. Transitions don't need to be folded.
1.2.4 Flip outriggers are adopted, the outriggers have a large span, strong anti-overturning torque, and are equipped with mechanical outriggers to ensure safe and reliable support.
1.2.5 The drilling rig adopts gear transmission as a whole, which has stable transmission, low noise and high reliability.
1.2.6 The clutch of the drilling rig adopts a pneumatic tire clutch, which has a simple structure and high reliability.

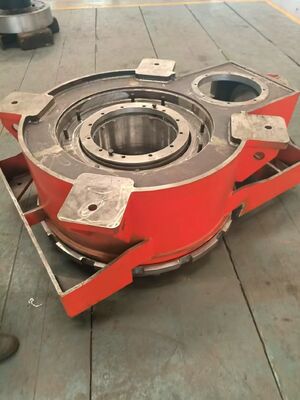

1.2.7 The turntable of the drilling rig adopts one-stage gear transmission, large module gear, and is impact-resistant.
1.2.8 The hydraulic system adopts an independent pumping station, with a rated pressure of 16MPa, a stable landing tower and high reliability.
The trailer drilling rigTrailer-mounted drilling rig is mainly composed of the following parts:

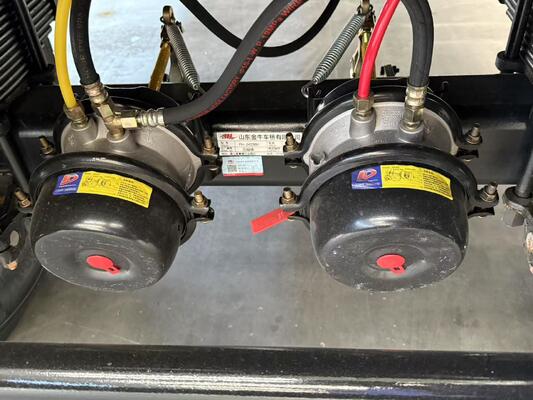

1. a gearbox; 2. a clutch; 3. a tandem double winch; 4. a turntable; 5. a folding drill tower; 6. a trailer chassis; 7. a mud pump; 8. a hydraulic system; 9. an assistive device;
