1000m truck-mounted drilling rig for hydrological wells, coal seam hole, grouting holes, geothermal wells

Product Details:

Place of Origin:	China
Brand Name:	SHIMEI
Model Number:	SMJ5370TZJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD325000
Delivery Time:	90 working days
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Application:	Hydrologicals Well, Coal Seam Hole Drilling, Grounting Hole, Geothermal Hole Drilling	Drilling Depth:	1000m
Mask Loading Capacity:	50 Tons	Chassis:	8X4

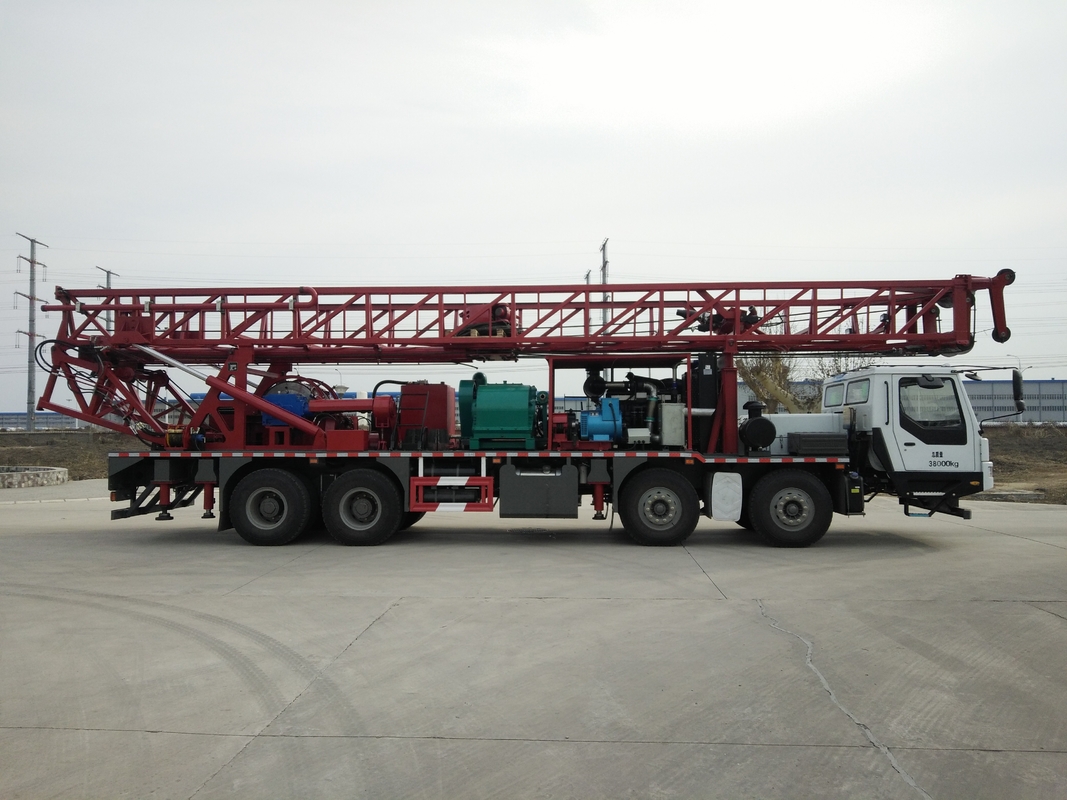

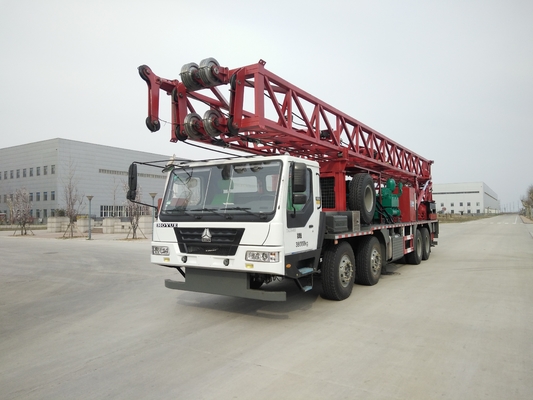

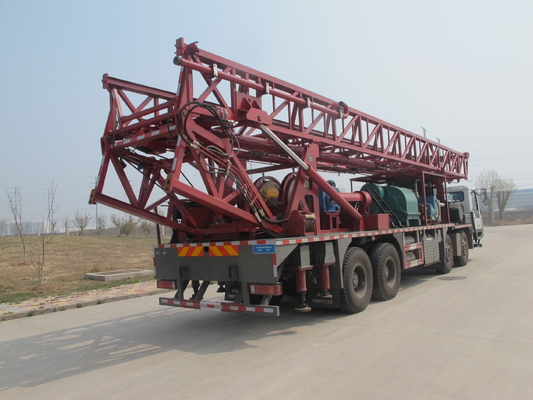

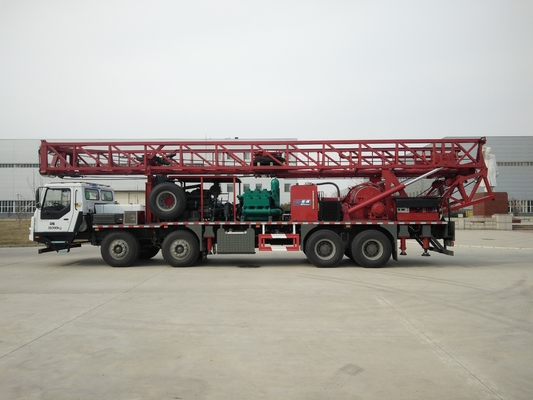

1000m truck-mounted drilling rig for hydrological wells, coal seam hole, grouting holes, geothermal wells

This drilling rig not only has the advantages of compact structure, strong mobility, low operating cost, and simple maintenance, but also has the following characteristics.

1 Auxiliary release device, which can easily loosen the lock joint, create favorable conditions for the reverse rotation of the rotary table to release the drill pipe, extend the service life of the transmission system, and reduce the labor intensity of workers.

2 Equipped with 4 hydraulic support legs and 2 mechanical support legs, it has a large load-bearing capacity, convenient operation, and is safe and reliable.

3 Hydraulic assisted braking reduces the labor intensity of workers during braking, enhances drilling efficiency and safety.

4 A large number of standard parts are used, with good universality and convenient procurement and maintenance.

This drilling rig can drill in various formations such as clay, sand layers, and Quaternary bedrock. It is mainly suitable for the construction of deep water wells, hydrogeological exploration holes, in-situ uranium extraction wells, grouting holes, shallow coal seam pores, engineering construction grouting holes, or other engineering holes.

Specification

Item				Parameters
Model				SPC-1000
Overall dimension(mm)				14200×2525×3930
weight(t)				38
Passenger /screw				2 persons
Min. travelling speed(kM/h)				80
Chassis				TAZ5415TYT
Driving mode				8×4
Drilling machine	Drilling capacity		Hole dia.(mm)	520
			Depth (m)	1000
			Kelly(mm)	108×108×10500
			Drilling rod(mm)	89×9000
	Power		model	QSL8.9-C360
			Power (kW)	236
turnplate	Dia.(mm)			520
	Rotation speed(r/min)			23,40,69,110,182,219, 23 reverse
Propelling Mechanism	Model			Hydraulic
	Pressure/relief capacity(kN)			350/220
	Pressure/relief stroke(mm)			10800
Max. shackle torque (kN.m)				60
Master winch		Single pulling force(kN)		70
		Rope capacity m		150/φ20
Mud pump		Model		3NB-130
		Max. flow rate(L/min)		1000
		Max. pressure(MPa)		10
Derrick		Loading capcity(T)		60
		Useful height(m)		15
