| Place of Origin: | Shijiazhuang, China |
| Brand Name: | SHIMEI |
| Certification: | MA |
| Model Number: | ZYJ-270/170 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Polywood case |
| Supply Ability: | 1000 units per month |
| Application: | Blasting Hole For Roof Caving In Colliery | Drilling Height: | 1.8-3.8m |
|---|---|---|---|
| Drilling Depth: | 150m | Drilling Dia.: | φ55-φ94 |
| High Speed: | 150mm/min | Feature: | Man Portable |

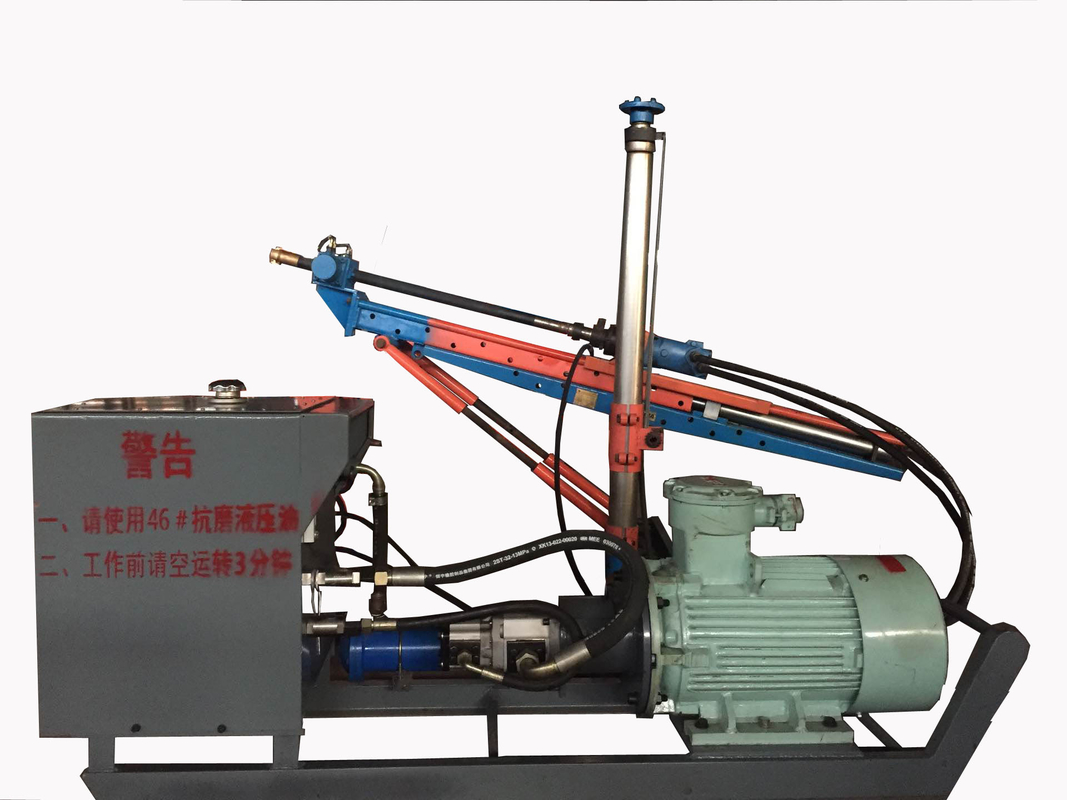

ZYJ-270/170 High Speed Man Portable Blasting Hole Drilling rig in colliery
The drilling rig is mainly used in the underground laneway for the blasting hole of roof caving in colliery.
The machine consists of 4 parts, the drilling part, the prob, the hudraulic power pack, and the operation panel.
The prop is a hydraulic cylinder, the height of the prop can be optional according to the laneway height.
The function of the prop is to stablize the drilling rig during drilling by press tightly against the roof and the floor of the tunnel. The second function of the prop is the drilling part can move up and down along the prop so that can make the drilling at the different height.
The drilling part can also attached to the roadheader to save the space.
| Main specification of drilling rig | ||
| Description | Unit | Parameter |
| Rated pressure | MPa | 12 |
| Rated torque | N.m | 270 |
| Rated rotation speed | r/min | 170 |
| Propelling force | kN | 15/20 |
| Drilling angle | ° | ±90° |
| Drilling depth | m | 150 |
| Drilling speed | mm/min | ＞150 |
| Propelling stroke | mm | 1100 |
| Applicable hardness | f ≤10 | |
| Drilling rod | mm | φ 42 |
| Drilling dia. | mm | φ 55-φ 94 |
| Weight of the rig | kg | 100 |
| Max. drilling height | mm | 3800 |
| Min. drilling height | mm | 1800 |
| Main specification of power pack | ||
| Motor model | YBK2-160M-4 | |
| Motor power | kW | 11 |
| Voltage | V | 380/660, 660/1140 |
| Current | A 26.6/13.1 | 26.6/13.1 |
| Double section gear pump | Ml/r 40/10 | 40/10 |
| Rated pressure | MPa | 14 |
| Rated flow rate | L/min 42 | 42 |
| Rated rotation speed | r/min 1460 | 1460 |
| Oil tank capacity | L 120 | 120 |
| Power pack dimensions | mm 1450×460×700 | 1450×460×700 |
| Weight of the power pack | kg 260 | 260 |
